Removing/Replacing Drier Flask For Air Conditioner

Removing And Installing/Replacing Drier Flask For Air Conditioner

Refrigerant drawn off from A/C system.
Follow instructions for dryer bottle replacement.
Remove right intake filter housing.







NOTE: Plug lines (2) if A/C system remains open for longer than one hour.

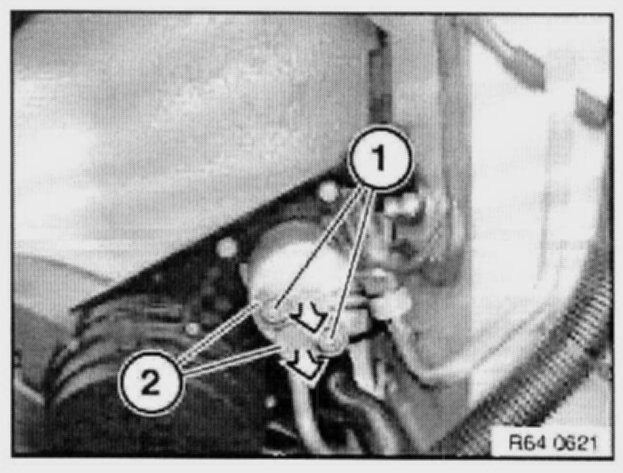

Loosen screws (1).
Detach lines (2) in direction of arrow.

Installation:
Replace sealing rings.

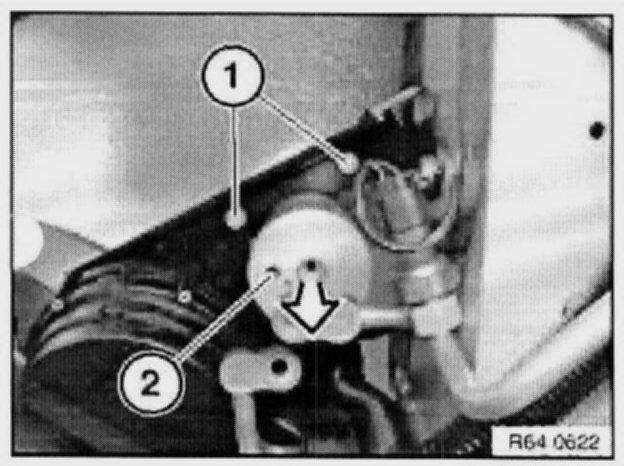

Loosen screws (1).
Remove dryer bottle (2) in direction of arrow.


NOTE: In event of warranty application, seal line openings with plugs of new dryer bottle.
