Neutral Detection, Position Switch
Neutral Detection, Position Switch

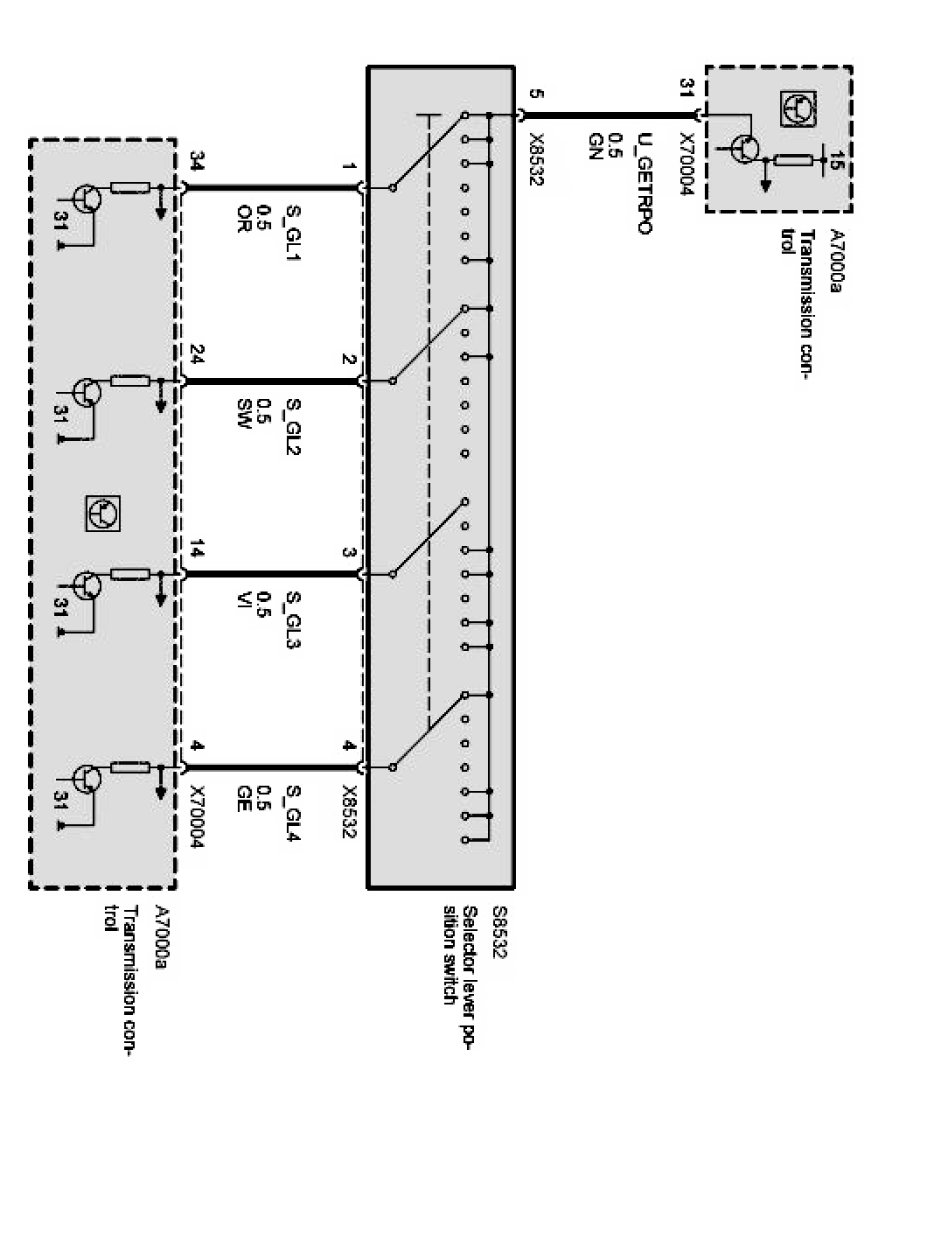

Transmission range position switch:
