Starter Motor: Service and Repair

Removing And Installing/Replacing Starter Motor (M62)

Switch off ignition.


NOTE:
Follow instructions for disconnecting and connecting battery.

Disconnect battery negative lead from battery.


Remove reinforcement plate.


CAUTION: The work step "Removing and installing reinforcement plate" contains important installation instructions refer to 31 10 010.







Remove protective cap (1) of battery positive lead from starter motor.
Release nut (2).
Tightening torque, refer to Technical Data 12 41 4AZ.
Disconnect battery positive lead (3) from starter motor.
Unclip battery positive lead from holders.







Release nuts (1).

Detach leads (2) from starter motor.

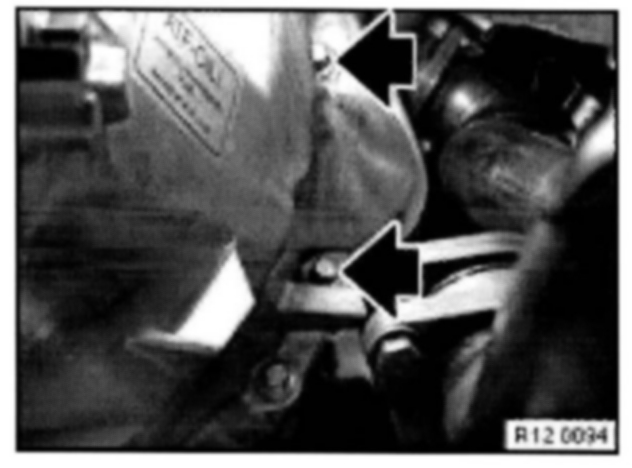

Release screws.
Tightening torque, Starter mount 47 Nm.

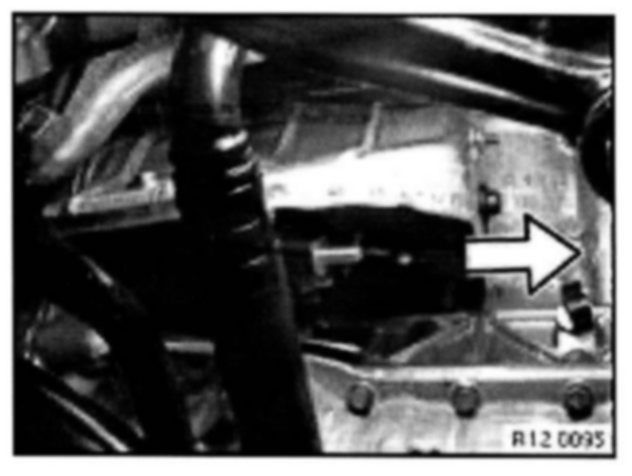

Pull starter motor out of transmission mount and remove.

Installation Note: Check starter pinion and ring gear for damage, replace starter motor if necessary.
