Fuel Filter: Service and Repair

Replacing Fuel Filter (M62, M54)

Switch off ignition.

Recycling
The fuel in the fuel lines is under pressure (approx. 3 to 5 bar)!
Fuel emerges when the fuel lines are disconnected from the fuel filter.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

Remove fuel pressure regulator.

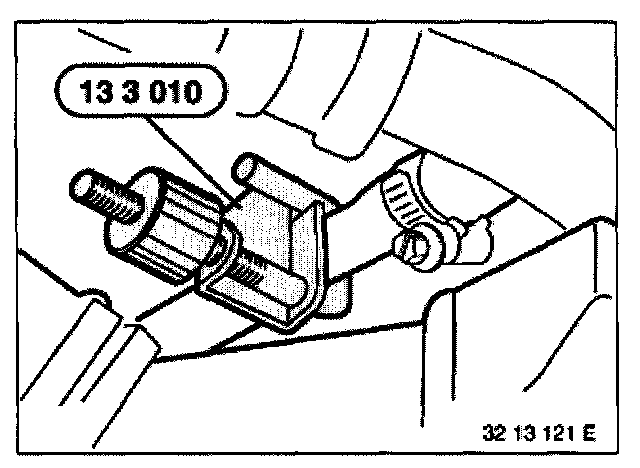

Seal fuel feed line before and after fuel filter with two special tools 13 3 010.
This prevents excessive discharge of fuel from the fuel lines.


NOTE:
Mark fuel lines on fuel filter.
This prevents the fuel lines from being installed incorrectly on the fuel filter.







Release clips (1).
Detach fuel lines (2) from fuel filter.

Installation Note: Replace clips.







Release screws.
Remove fuel filter (1) from holders (2).
