Gearshift Unit (Solenoid Valves), Shift-Lock

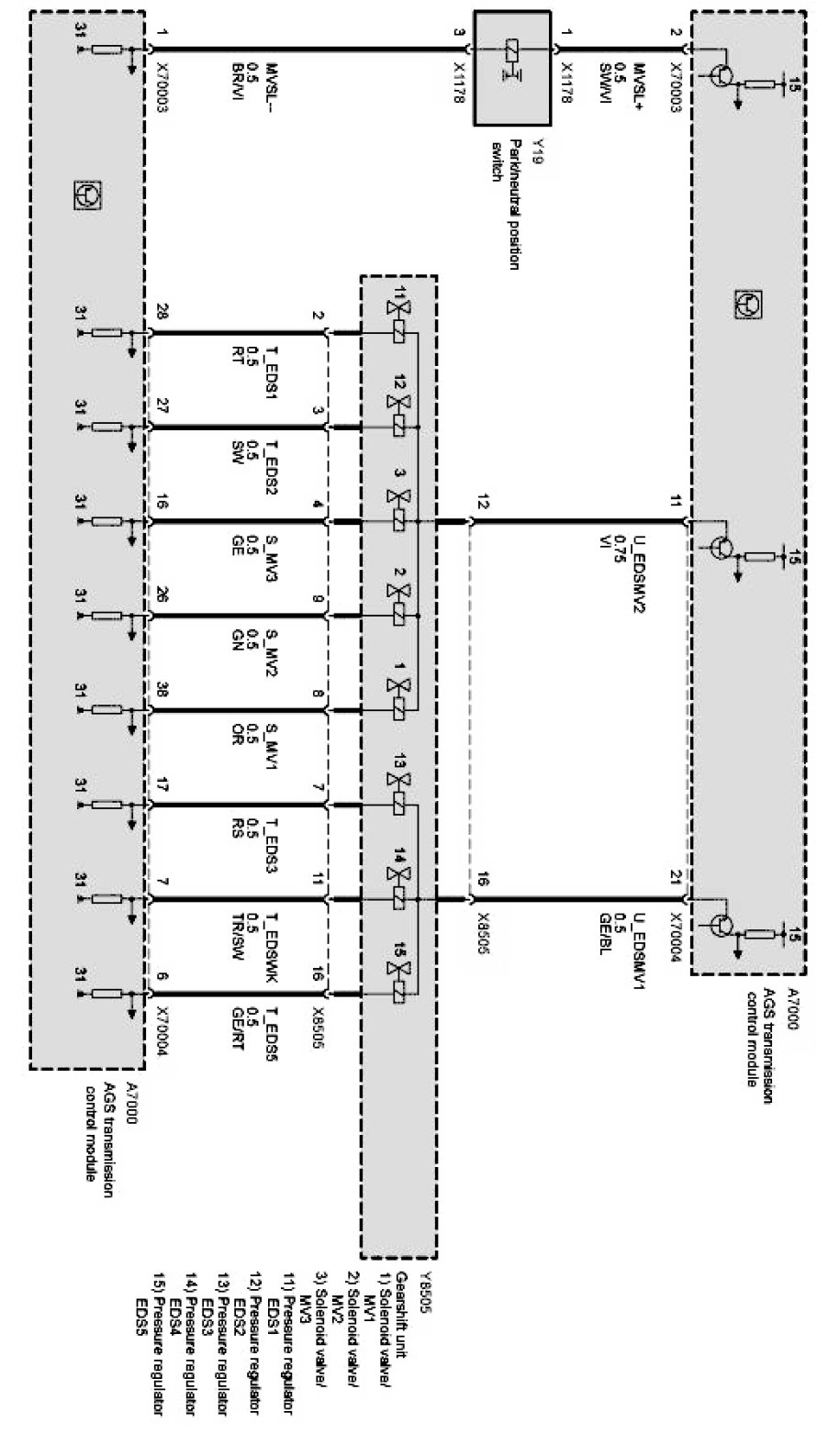

E53 Gearshift unit (solenoid valves), shift-lock Part 1 Of 1:
