Replacing Limit Switch For Fan

Replacing Limit Switch For Fan Of Heater/Air Conditioner (Climate Control)

Remove right glovebox. Service and Repair
Remove trim on center console. Service and Repair

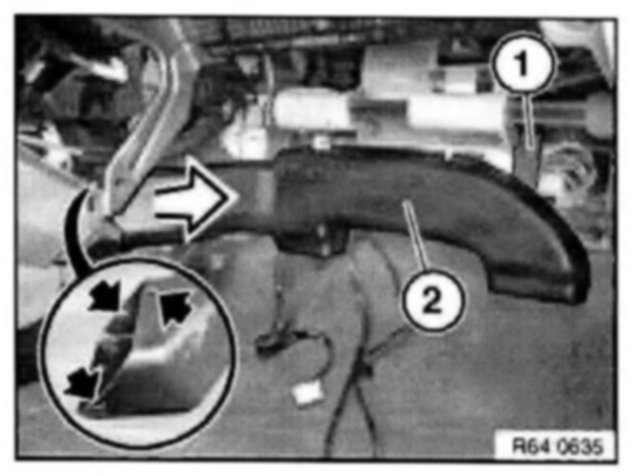

Unhook holder (1).
Unclip heating duct for right footwell (2) and remove in direction of arrow.

Installation Note: Ensure heating channel for right footwell (2) is correctly seated.

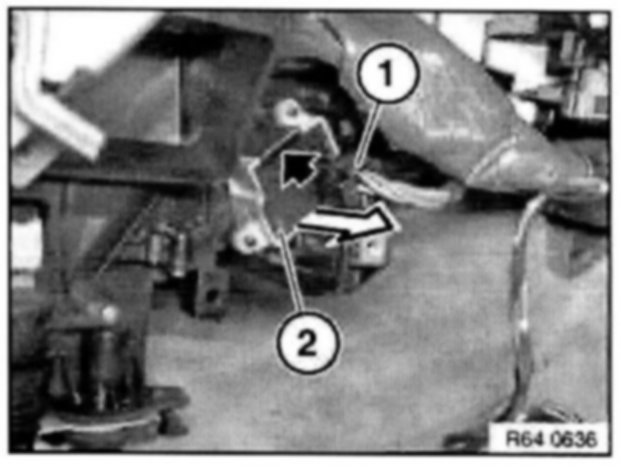

Disconnect plug connection (1).
Unlock limit switch for fan (2) and pull out in direction of arrow.
