Replacing Fresh-Air Grill Center

Removing And Installing/Replacing Fresh-Air Grill Center

Special tools required:
- 64 1 020

For purposes of clarity:

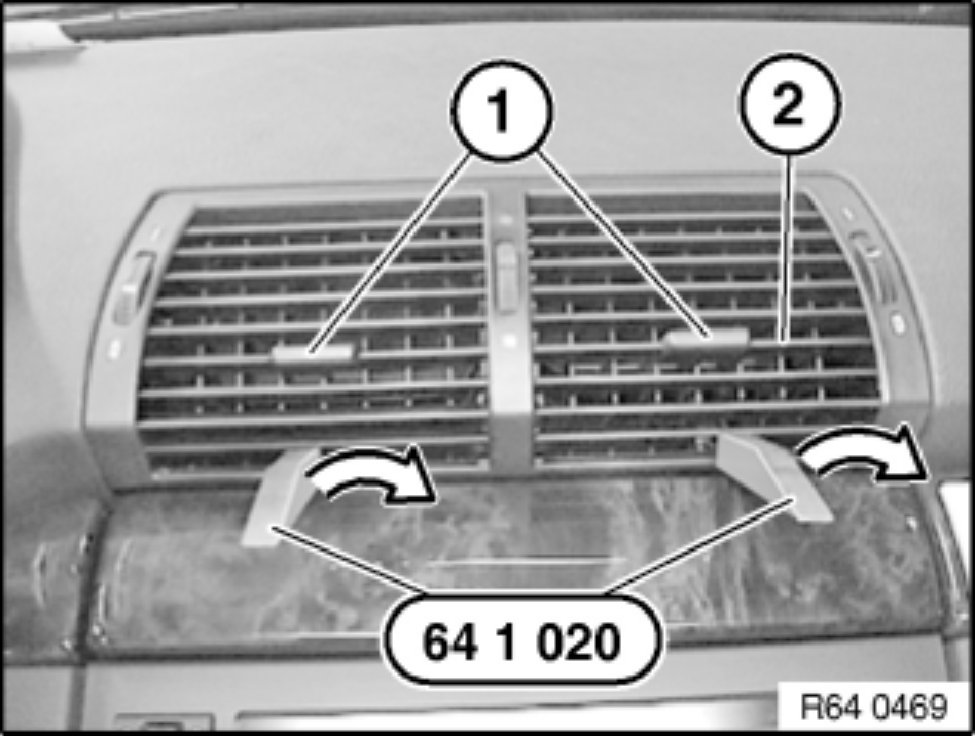

Fig. 1: Fresh air grill (1) in locked state.
Fig. 2: Fresh air grill (1) in unlocked state.







Move air outlet adjuster (1) into illustrated position.
Insert special tool 64 1 020 as illustrated at an angle downwards into openings of fresh air grill (2).
To unlock fresh air grill (2), turn special tool 64 1 020 through approx. 90 degrees in direction of arrow.
Withdraw fresh air grill (2) in direction of arrow.

Installation:
First allow fresh air grill (2) to snap into place at top.

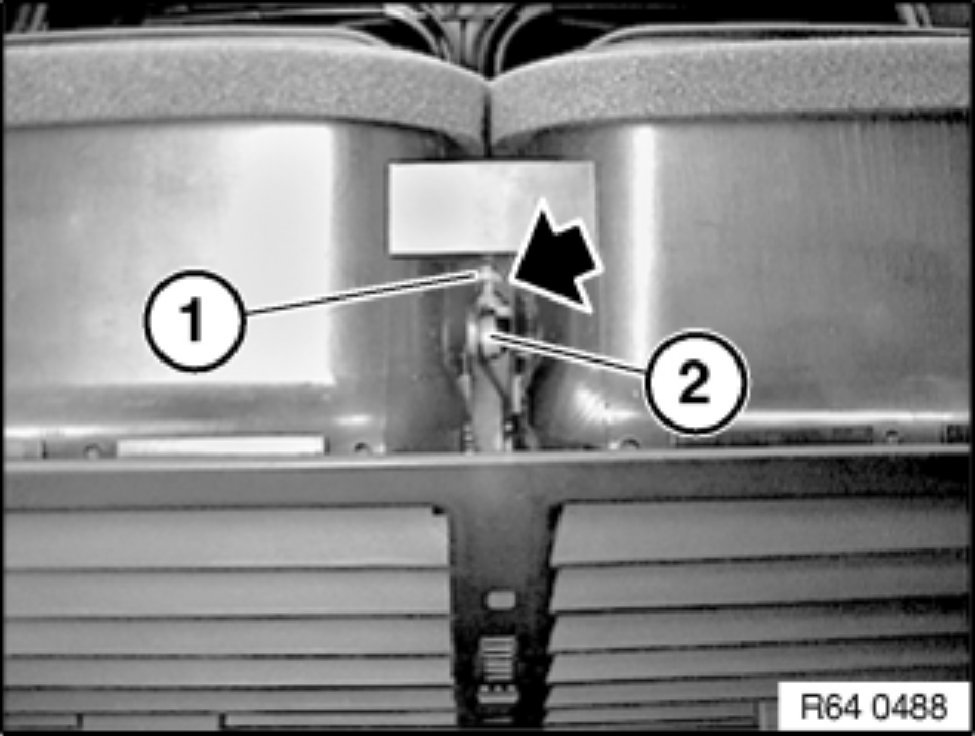

Unclip Bowden cable (1) and unhook at eyelet (2).
