Home >> BMW >> 2003 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> LED Display

LED Display

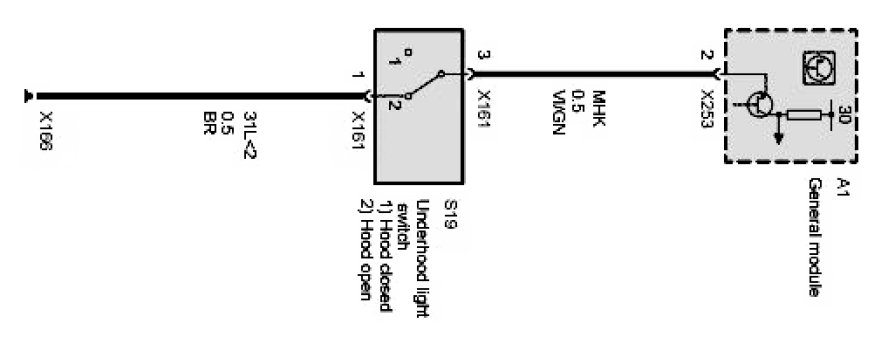

E53 Engine-compartment contact Part 1 Of 1:
