Home >> BMW >> 2003 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Driving Lights Sensor (RLS Rain/Light Sensor)

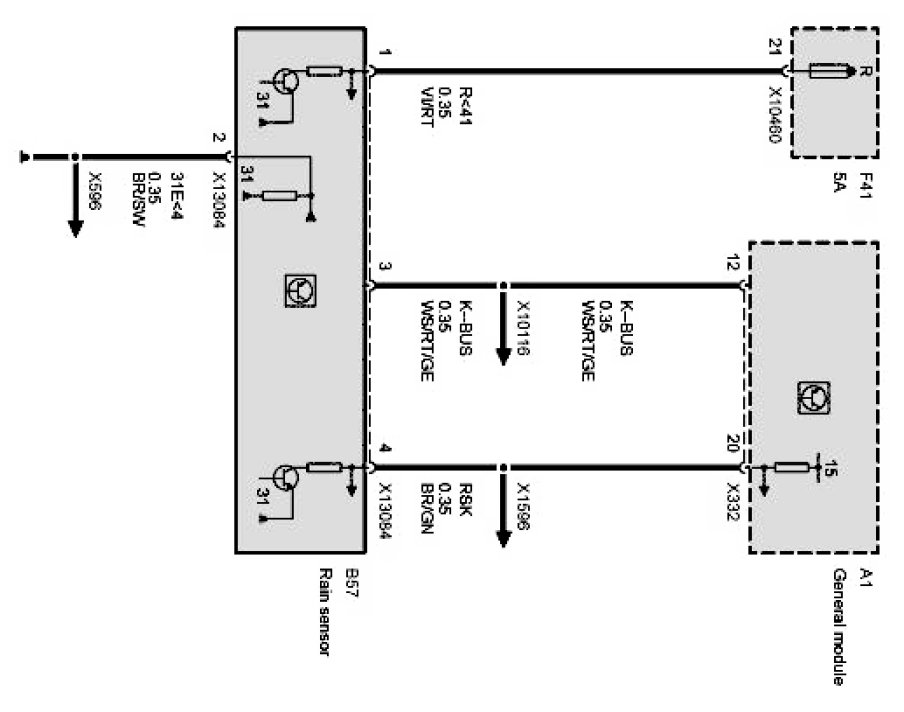

Driving Lights Sensor (RLS Rain/Light Sensor)

E53 Rain sensor Part 1 Of 1:
