Idle Speed/Throttle Actuator - Electronic: Locations

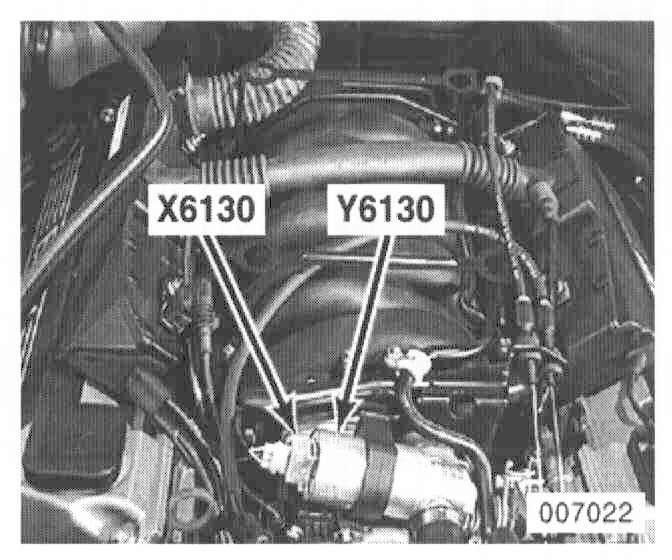

Component / Connector View: Y6130, X6130:

Component ID Y6130, Idle Speed Control Valve
Connector ID X6130, Connector (3 Pin, Orange)
Location Top Center Of Engine
