M3 Coupe (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Bus Functions - Body Control
>>

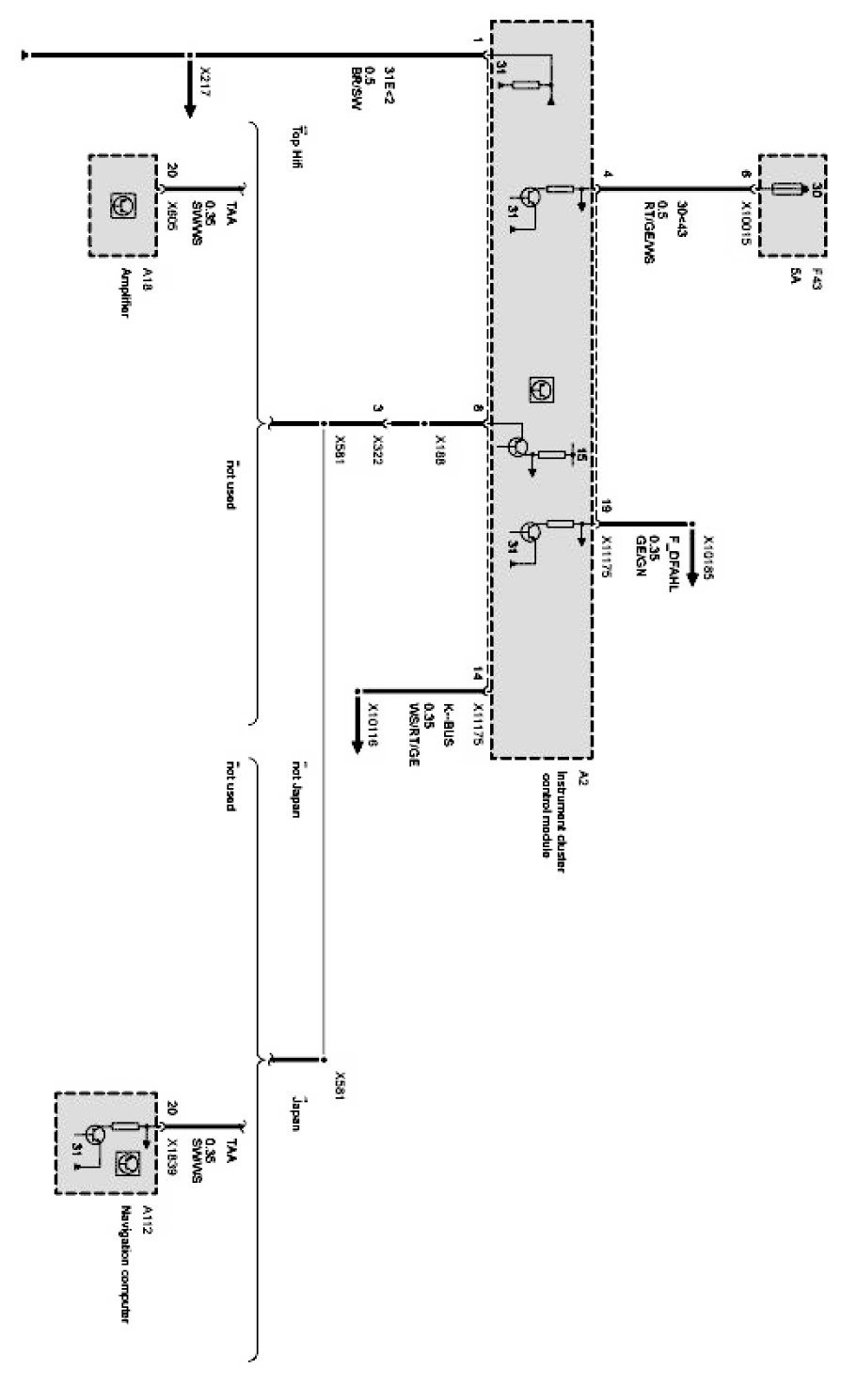

Speedo Output Signal
Speedo Output Signal
Speedometer (A) Output Signal:
