Removing/Replacing Condenser For Air Conditioner

Removing And Installing Or Replacing Condenser For Air Conditioner

Refrigerant drawn off from A/C system.
Remove radiator.
Remove cassette.

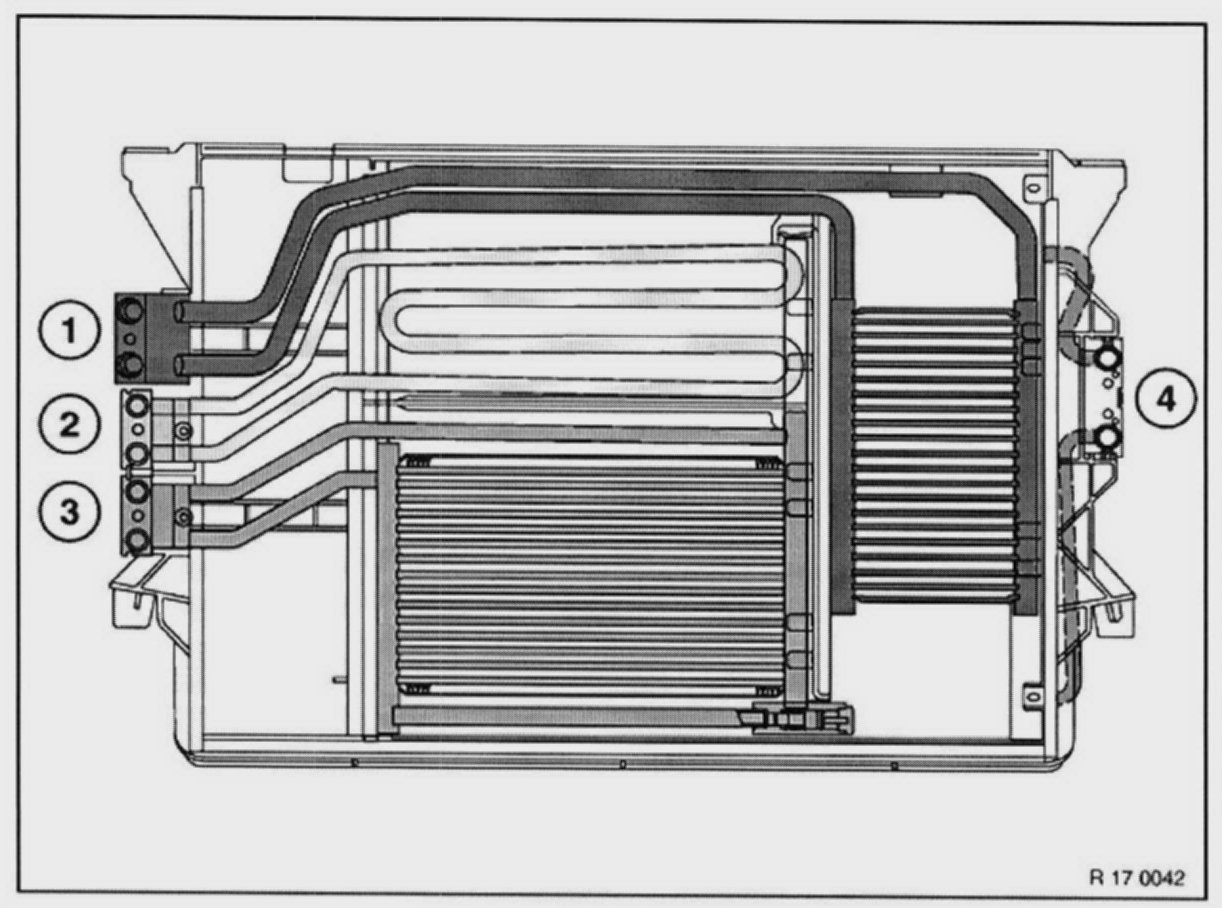

Unclip all coolers from cassette.

1. Engine oil cooler
2. Cooler pipe for steering fluid
3. Transmission oil cooler
4. Condenser for air conditioner

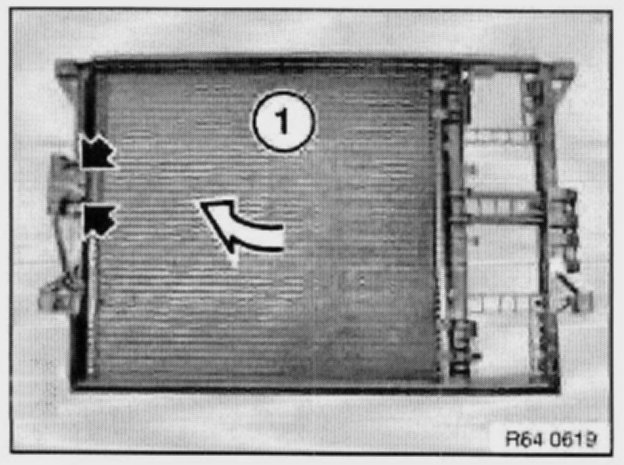

E52 only:
Unclip condenser (1) and remove in direction of arrow.
