Condenser Fan: Service and Repair

Removing And Installing/Replacing Pressure Fan For Condenser

Remove top air duct.

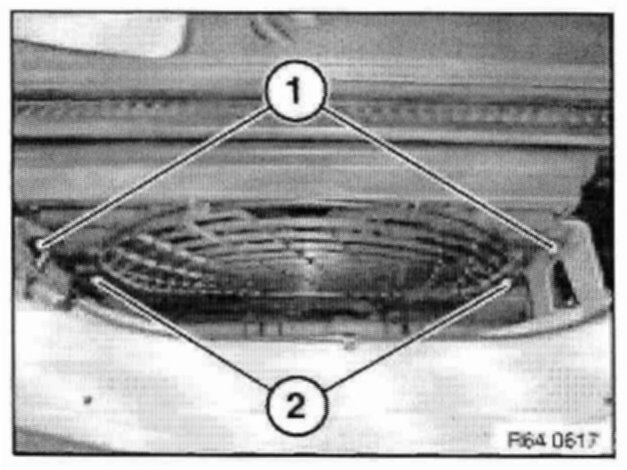

Unscrew nuts (1).
Loosen screws (2).

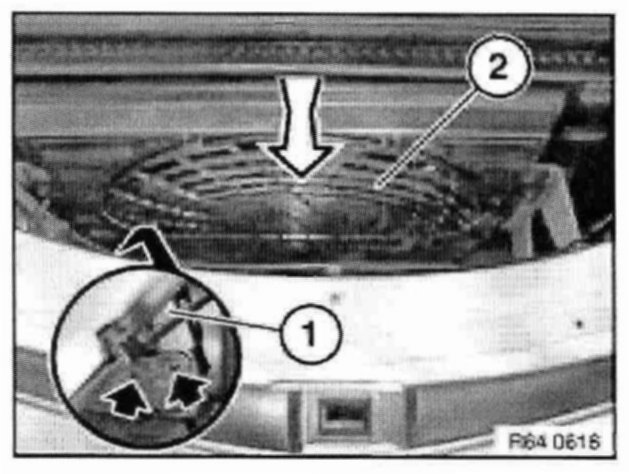

Unclip plug connection (1) and disconnect.
Pull out pressure fan (2) in direction of arrow.
