Overhauling

Note:
Use repair kit.
Read and comply with General Data, refer to Brakes and Traction Control, Description and Operation.

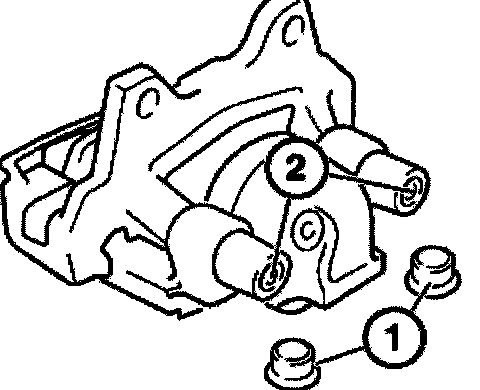

Take off plastic caps (1).
Unscrew guide screws (2).

Installation: Only clean guide screws; do not grease. Check guide bolts, replace if necessary.

Tightening torque: refer to Specifications.

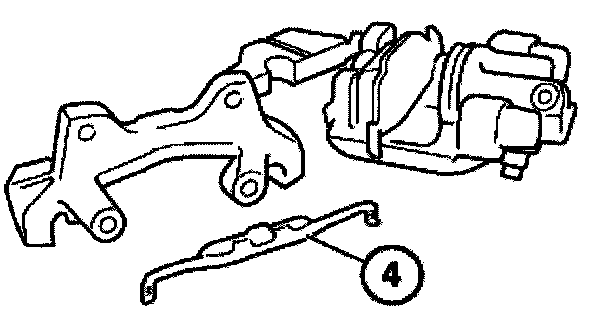

Dismantle brake caliper and remove brake linings.

Installation: Press brake lining fully outwards and insert spring (4).

Warning: In the following work step, large forces occur at the brake caliper piston (up to more than 2800 N!). Danger of injury!

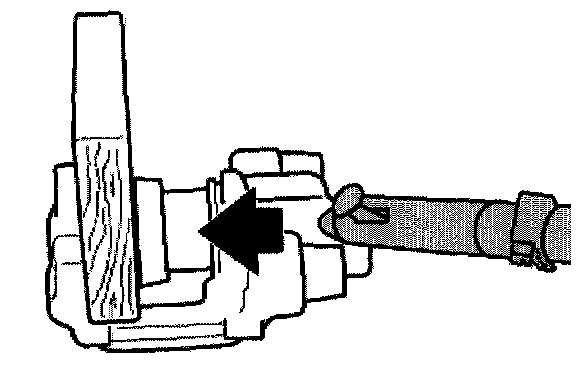

Press out piston with compressed air applied through connection bore.

To protect piston, place a protective plate (e.g. hard wood or hard felt) in caliper recess.

Do not grip piston with fingers - risk of trapping!

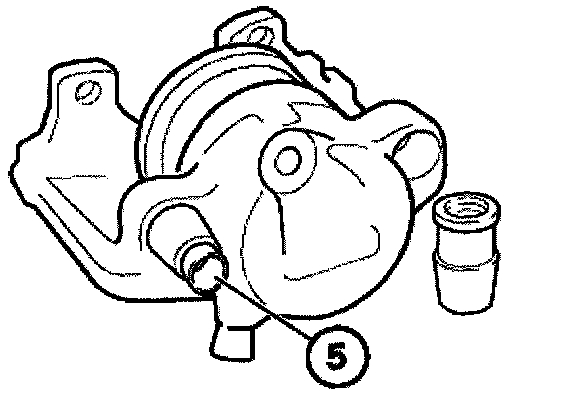

Check guide sleeves (5), fitting repair-kit guide sleeve if necessary.

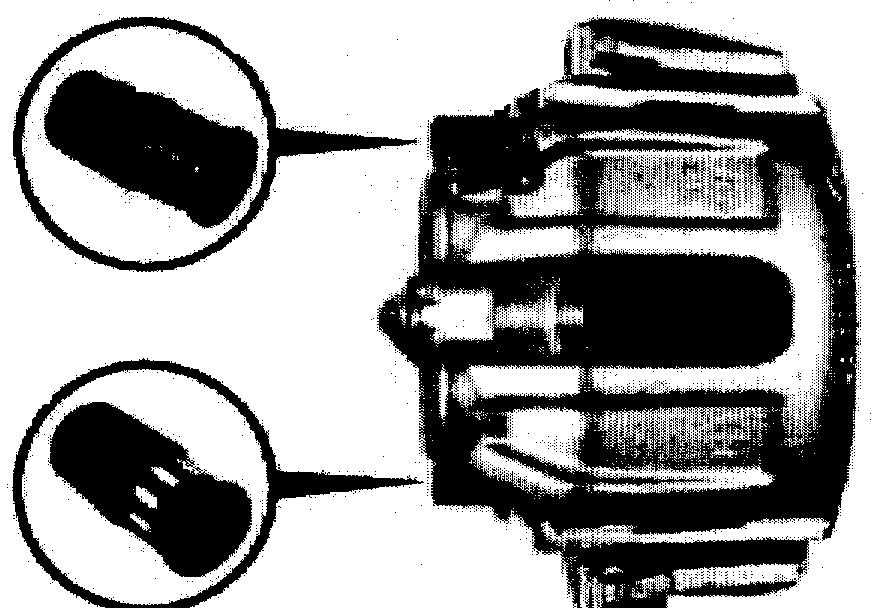

Right - 750i/iL and Z8

Installation: Ensure proper installation position of guide sleeves.
1. Guide sleeve with Teflon socket (white insert) is located on disk inlet (bottom)
2. Guide sleeve in standard version (black) is located on disk outlet (top)

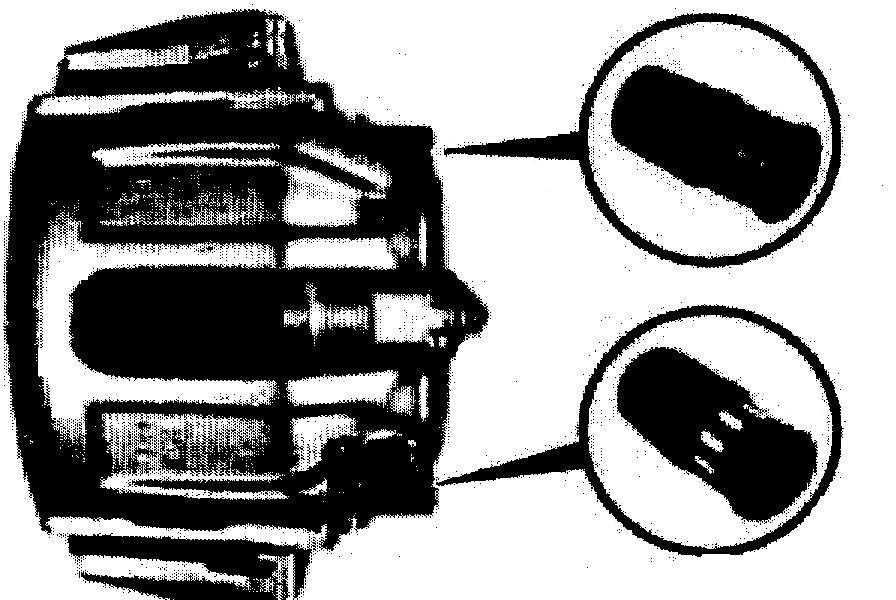

Left - 750i/iL and Z8

Installation: Ensure proper installation position of guide sleeves.
1. Guide sleeve with Teflon socket (white insert) is located on disk inlet (bottom)
2. Guide sleeve in standard version (black) is located on disk outlet (top)





Remove sealing ring carefully with a plastic needle.

Clean cylinder bores and parts with alcohol and dry with compressed air.

Thoroughly inspect cylinder bore, piston and flange surfaces. Machining of cylinders and pistons is not permitted.

Installation:

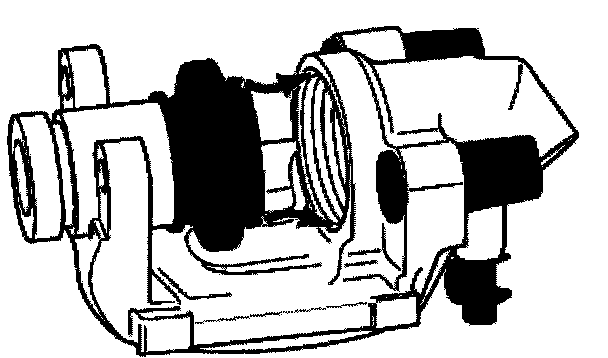

Apply a light coat of ATE brake cylinder paste to cylinder bore, piston, dust sleeve and sealing sleeve.

Install sealing cover in rear annular groove of cylinder bore.

First fit dust sleeve on piston. Insert sealing bulge into front groove of cylinder bore and press in piston with a hardwood board.

Caution: Do not tilt piston.
