Removing and Installing/Replacing Soundproofing In Firewall (Top)

51 13... Removing And Installing/Replacing Soundproofing In Firewall (top)

Remove microfilter for passenger compartment ventilation.
Remove both windshield wiper arms.

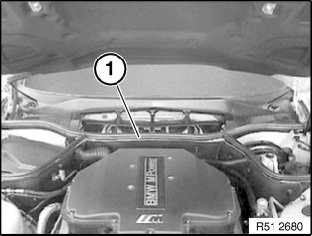

Detach seal (1).

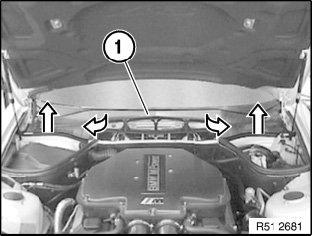

Raise soundproofing for firewall (1) in direction of arrow and pull out towards front.







Installation:

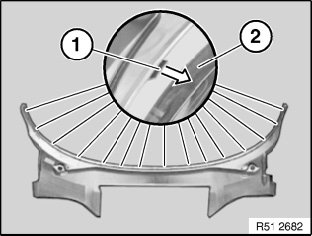

Feed in lugs (1) under windshield (2).
