Removing and Installing/Replacing Cooler Box Lid

64 11 478 - Removing and installing/replacing cooler box lid

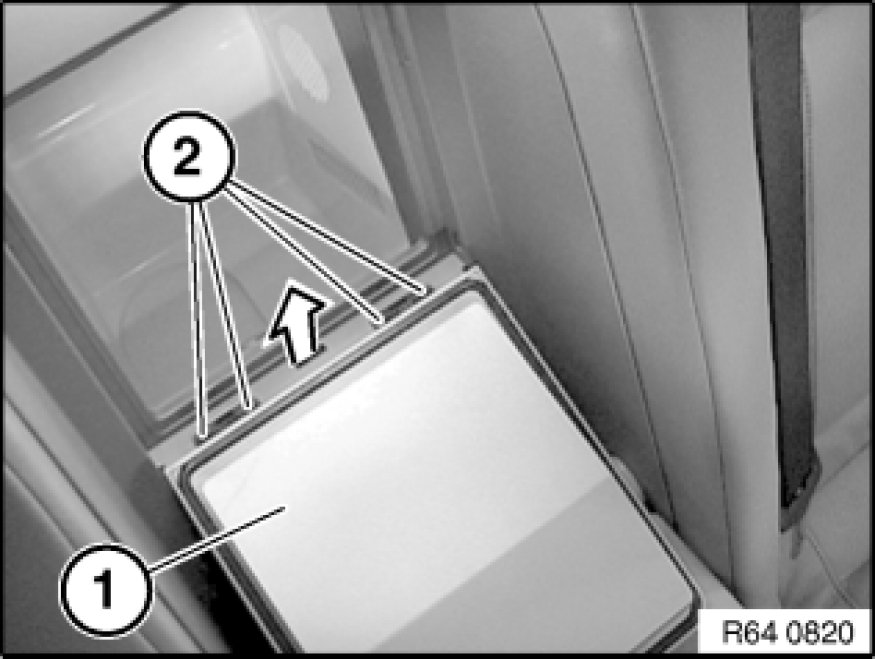

Open cooler box lid (1).
Release screws (2).
Pull out cooler box lid (1) in direction of arrow and remove.
