Body
>>
Operation
>>
Rear-Compartment Controller (FBZM Rear Compartment, Control Center, Center Console)
>>
Control Center, Center Console, Rear Compartment, Supply
Control Center, Center Console, Rear Compartment, Supply

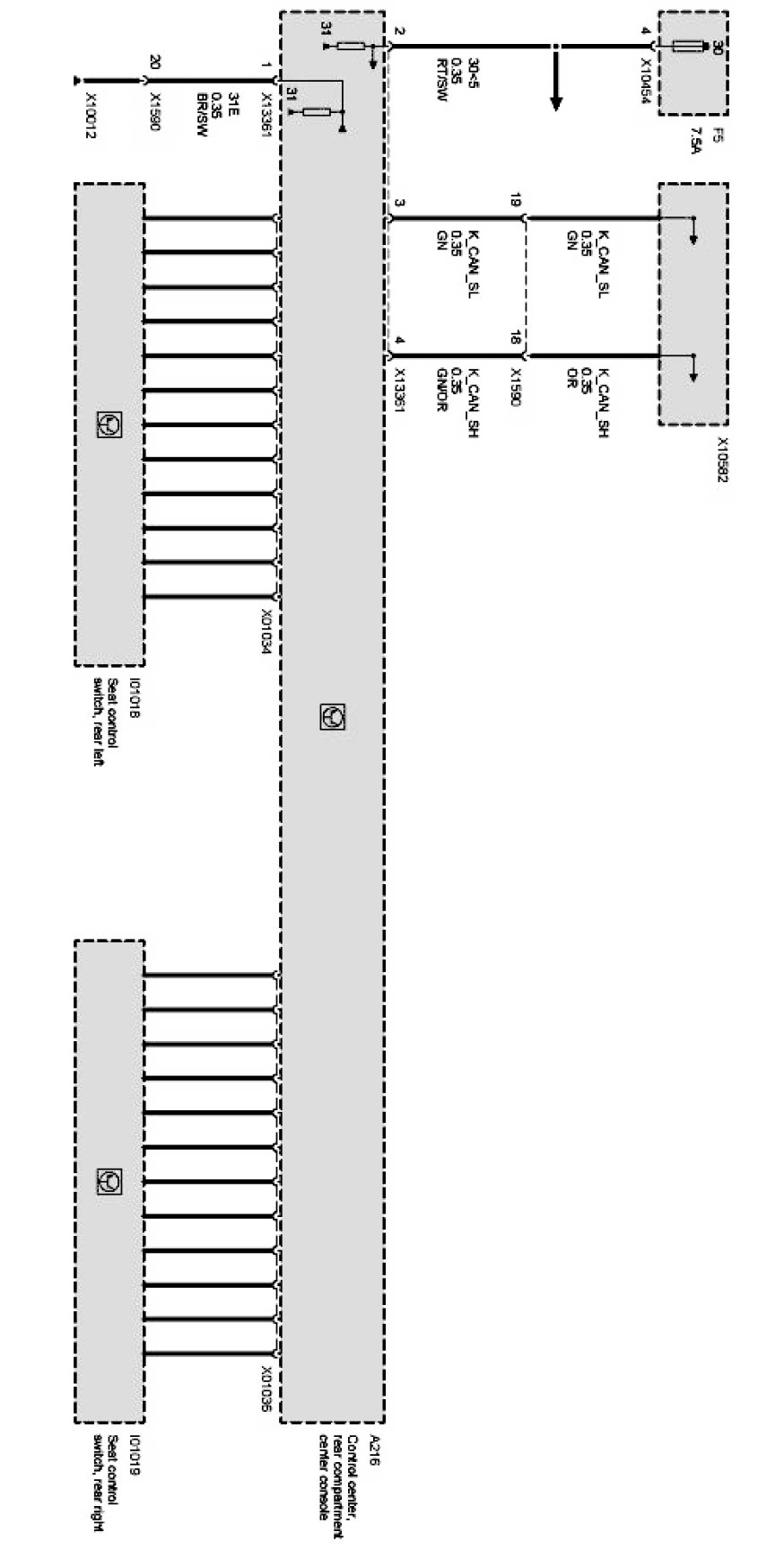

Supply, rear compartment center console control center:
