Rear Compartment Display (FD Rear-Compartment Display or SG-FD-GW Control Module, Rear-Compartment Disp. (Gateway))
>>
Rear Compartment Display
Rear Compartment Display

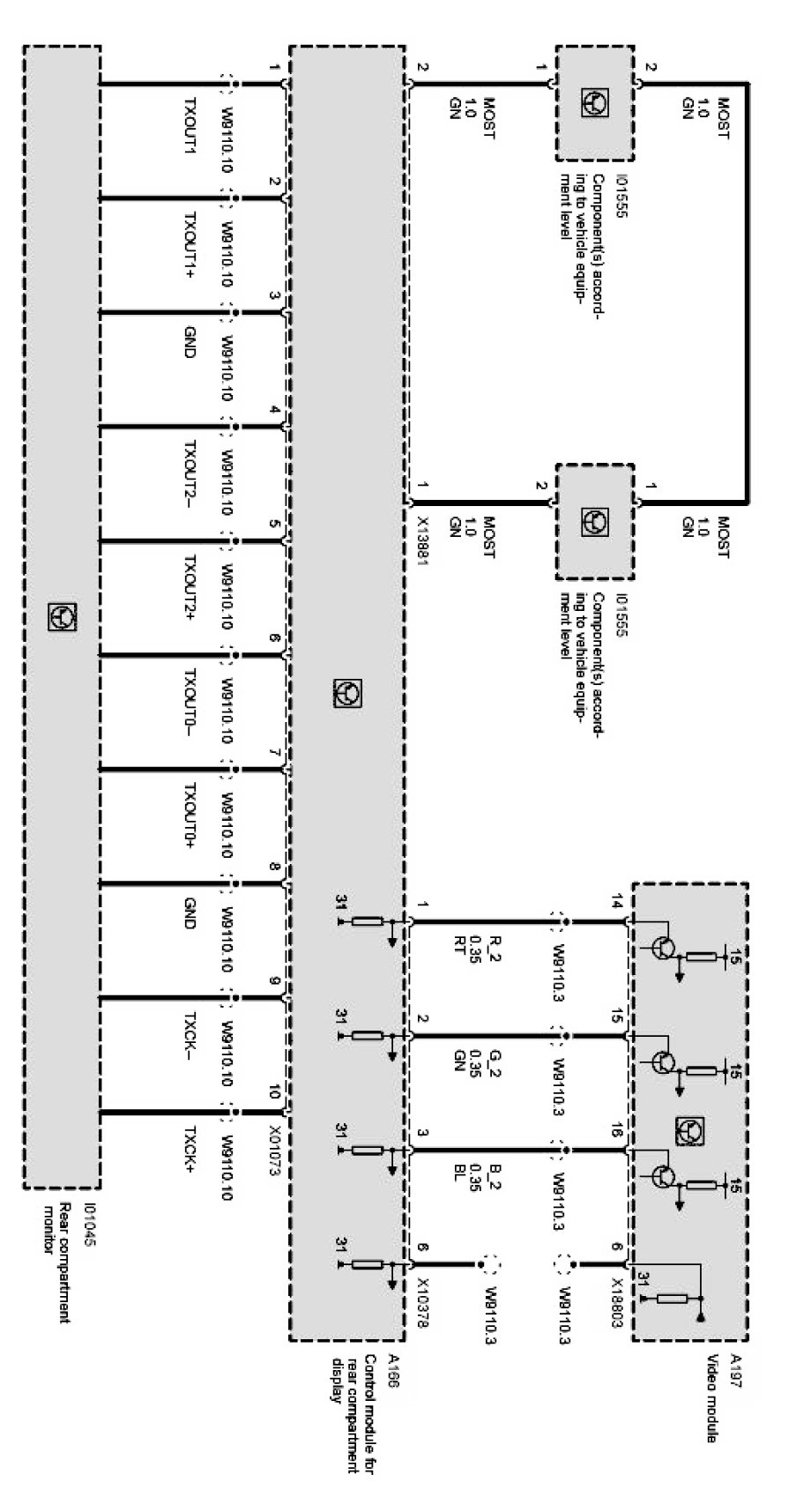

Rear-compartment display:
