Replacing Expansion Valve (Air-Conditioning)

Air Conditioner Drained,
Refer to Air Conditioner Evacuating and Charging.Service and RepairHeating and Air Conditioning

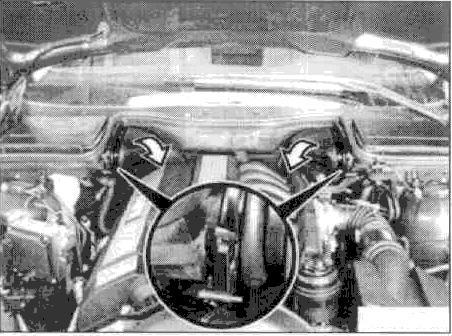

Unfasten clip from right air ducts, twist air duct and lift out.





Installation:

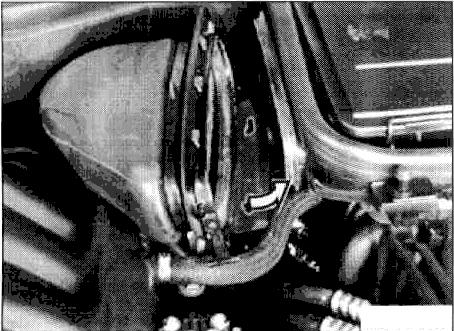

Fit air duct to end wall, twist and then insert in bottom of microfilter

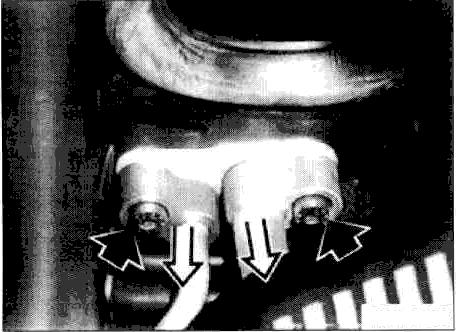

Unfasten screws and remove pressure and suction pipe

Caution!
Replace O-rings





Remove Glove Box.

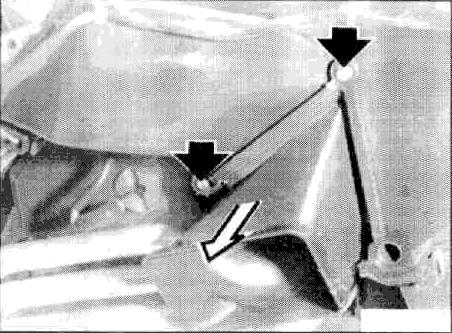

Remove trim sections from right oddments tray, Unfasten screws and pull out air duct for footwell ventilation.

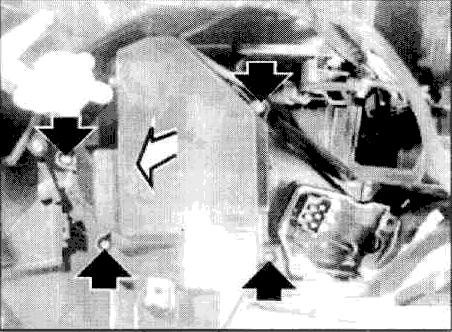

Unfasten screws and remove cover from expansion valve.

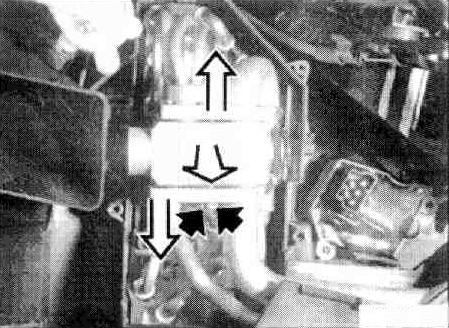

Unfasten screws, pull lines slightly apart and remove expansion valve.

Caution!
Replace O-rings.
