Replacing Front Plate

Replacing Front Plate (Air Conditioner Controls)

Remove heater controls.

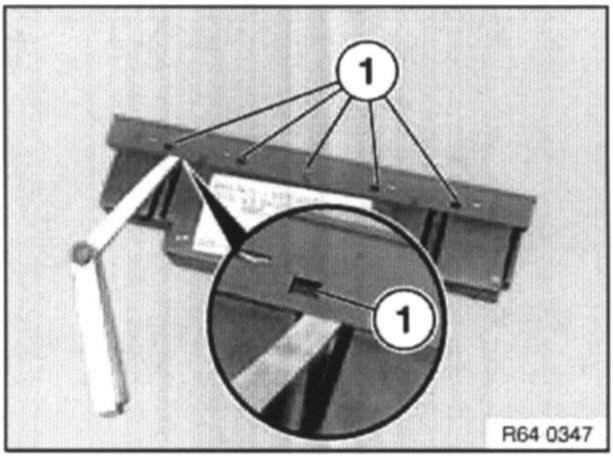

Carefully unclip clips (1) at top and bottom. Remove front plate.







Installation:

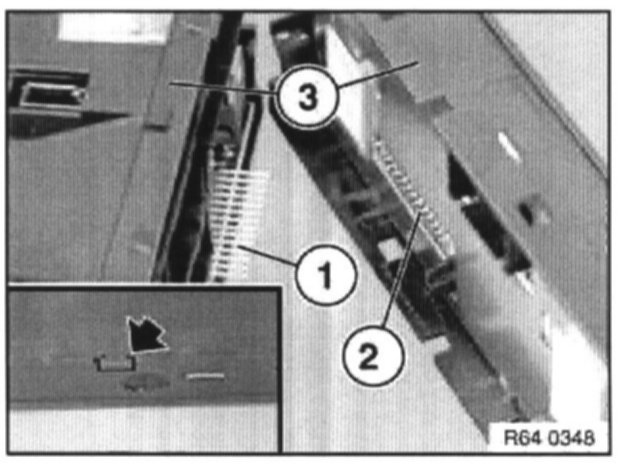

Insert pins (1) straight into bushes (2).
Make sure when pushing front plate together with housing that swallow-tail guides (3) engage each other.
