Removing and Installing Heater Controls

Removing And Installing Heater Controls (A/C Control)

Remove switch unit from center console.

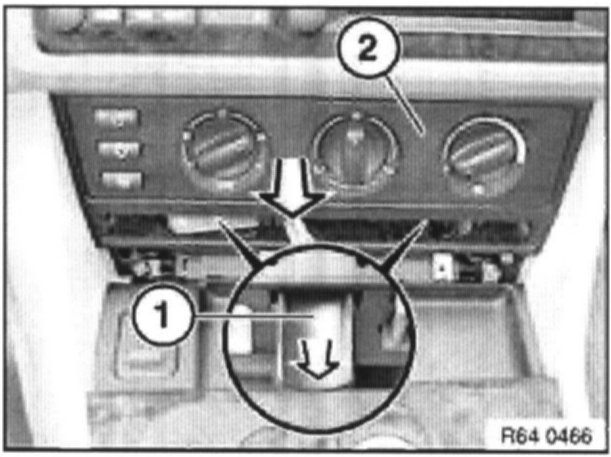

Press retaining hook (1) upwards through opening for switch unit.
Remove heating controls (2).

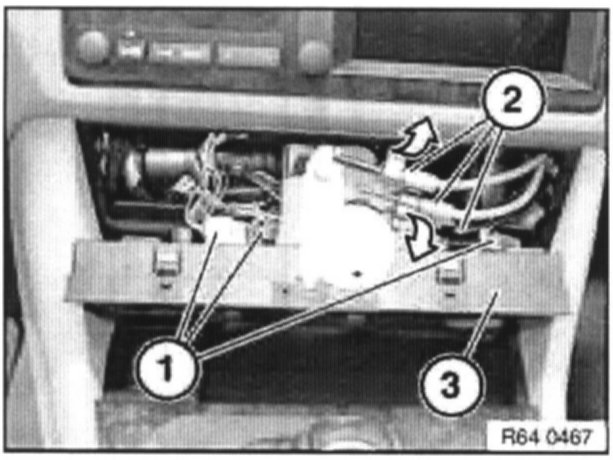

Disconnect plug connections (1).
Unclip Bowden cables (2) and remove.

Installation:
Pay attention to color coding of Bowden cables (2).
Remove heating controls (3).
