Brake Fluid Pressure Sensor/Switch: Service and Repair

Note: The brake system does not need to be bled if a pedal support is used.





Apply pedal support and press brake pedal slightly. This prevents brake fluid from being discharged or air entering the brake system when the pressure sensor is released.

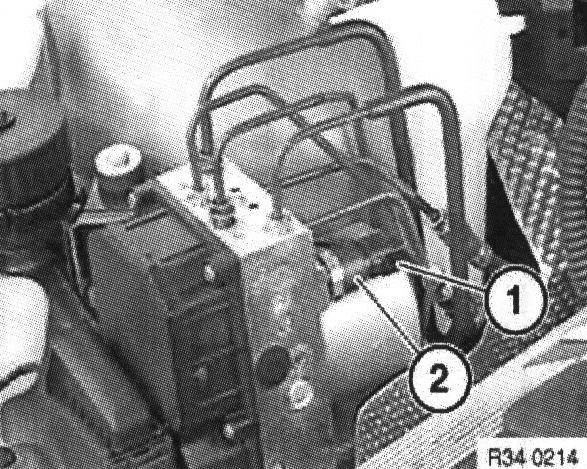

Release plug connector (1) and pull off.
Detach pressure sensor (2) with special tool 34 5 160.

Installation:
Observe tightening torque refer to Brakes, Specifications.
