Sound Proofing / Insulation: Locations

41 00... Arranging Shaped Parts For Cavity Bulkhead

To reduce interior noise, certain areas of the body can have the cavities sealed. To do this, shaped parts are inserted in the cavities. The shaped parts expand to fit the contact faces perfectly by heating the body to approx. 180 °C and holding the temperature for approx. 20 minutes.

Since it is not possible during body repairs to heat the body up and maintain it at temperature for long enough, the following procedure has been defined for this eventuality.

This procedure is described in
Installation of shaped parts for cavity bulkhead, except cover for side member
Installation of cavity bulkhead, cover for side member.

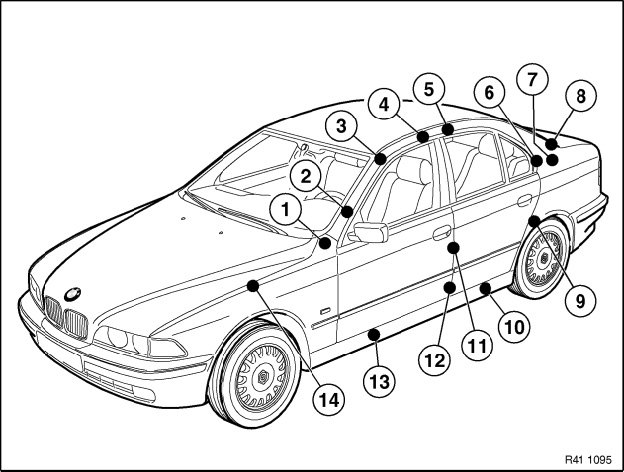

Location of shaped parts in cavity bulkhead E39







Location of shaped parts is marked by points.
- (1) Side of windshield, refer to Replacing front left door pillar (partial replacement) (front side panel removed)
- (2) Reinforcement of A-pillar, Spare part already in expanded form
- (3) Front roof frame, Spare part already in expanded form
- (4) Front center roof frame, Spare part already in expanded form
- (5) Rear center roof frame, Spare part already in expanded form
- (6) Reinforcement on C-pillar, refer to Installation of shaped parts for cavity bulkheads, except for cover for side member

Location of shaped parts in cavity bulkhead E39







Location of shaped parts is marked by points.
- (7) C-pillar, refer to Installation of shaped parts for cavity bulkheads, except for cover for side member
- (8) Lower rear window frame, Spare part already in expanded form
- (9) Rear wheel housing, refer to Installation of shaped parts for cavity bulkheads, except for cover for side member
- (10) Cover for rear side member, refer to Installing cavity bulkhead cover for side member
- (11) Top of B-pillar, Spare part already in expanded form
- (12) Bottom of B-pillar, Spare part already in expanded form
- (13) Cover for front side member, refer to Installation of cavity bulkhead cover for side member
- (14) Support carrier, wheel arch, front, already contained expanded in wheel arch spare part
