Front Fender Liner: Service and Repair

51 71 040 Removing And Installing/replacing Front Left Or Right Wheel Arch Cover

Remove front wheel.

M5 only:
Remove front splash guard.







Remove screws (1) and (2).

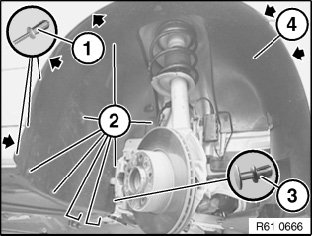

Release expansion rivets (1) and (3).
Release screws (2).
Remove front wheel arch cover (4).

Installation: Make sure front wheel arch cover is correctly seated against side wall.
