Front Door Window Regulator: Service and Repair

51 33 000 Removing And Installing Electric Window Regulator In Left Or Right Front Door

Note: Whenever battery power is interrupted to window motors, Initialize Windows Testing and Inspection

Disconnect negative battery lead.
Version with side airbag:
Removing and installing airbag in left or right front door. [1][2]Procedures

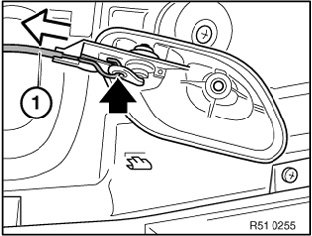

Pull Bowden cable (1) backwards, detach from door handle and remove.

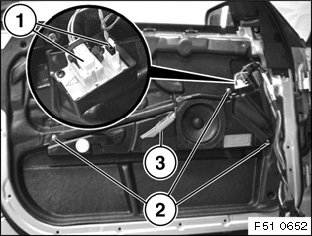

Remove connector (1).
Unfasten screws (2) and remove loudspeaker box (3).







Remove connector from window regulator drive unit.

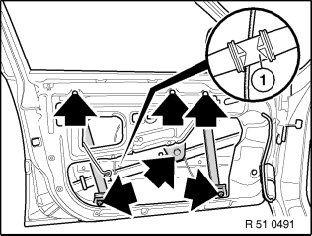

Pull off guide (1).

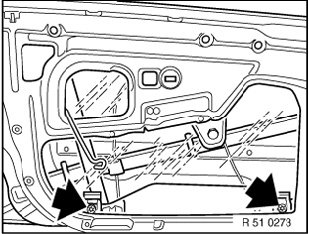

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.







Installation:
Install window regulator in locating bracket and install all screws loose.

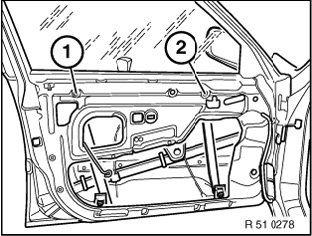

Tighten down screws (1) and (2).

2AZ Window regulator to door 8 Nm






Installation:
Installing door window in clamps of window regulator and adjusting door window.







Installation:
Lower door window down to stop.

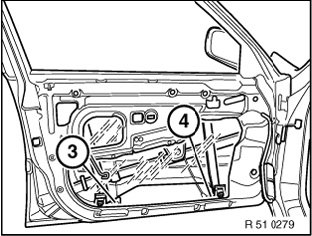

Tighten down screws (3) and (4).
2AZ Window regulator to door 8 Nm







Installation:
Close door window firmly.

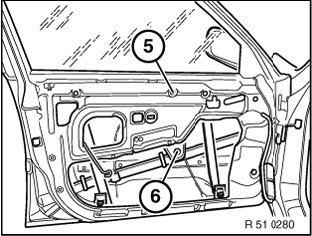

Tighten down screws (5) and (6).
2AZ Window regulator to door 8 Nm
