51 36 ... Firmly Tensioning Rear Left Or Right Side Window

Special tools required:
- 513 010
- 513 090







Dampen down suction faces.

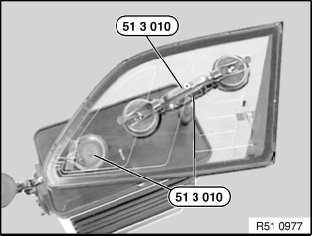

Fit special tool 51 3 010 to tool trolley and secure side window.
Secure special tool 51 3 010 (without joint) to inside of window.







Secure special tool 51 3 010 (without joint) opposite to inside of window.

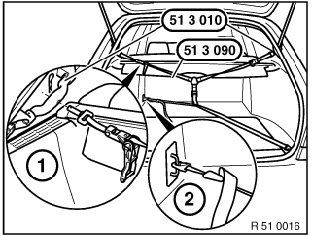

Secure special tool 51 3 090 (tensioning belt) at top to special tool 51 3 010 (1). Hook tensioning belt at bottom diagonally in lashing eyes and pull tight (2).

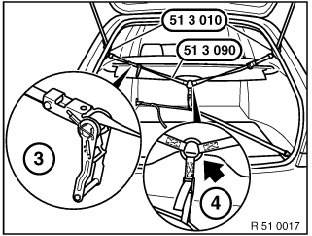

Tighten middle belt tensioner (4) so that special tool 51 3 090 is at a 90° angle to side window.







Tighten top belt tensioner (3) until eye can be pulled approx. 20 mm toward rear (4).
