Home
>>
BMW
>>
2003
>>
525i Sport Wagon (E39) L6-2.5L (M54)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Electronic Throttle Actuator
>>
Description and Operation
>>
EML System Overview
>>

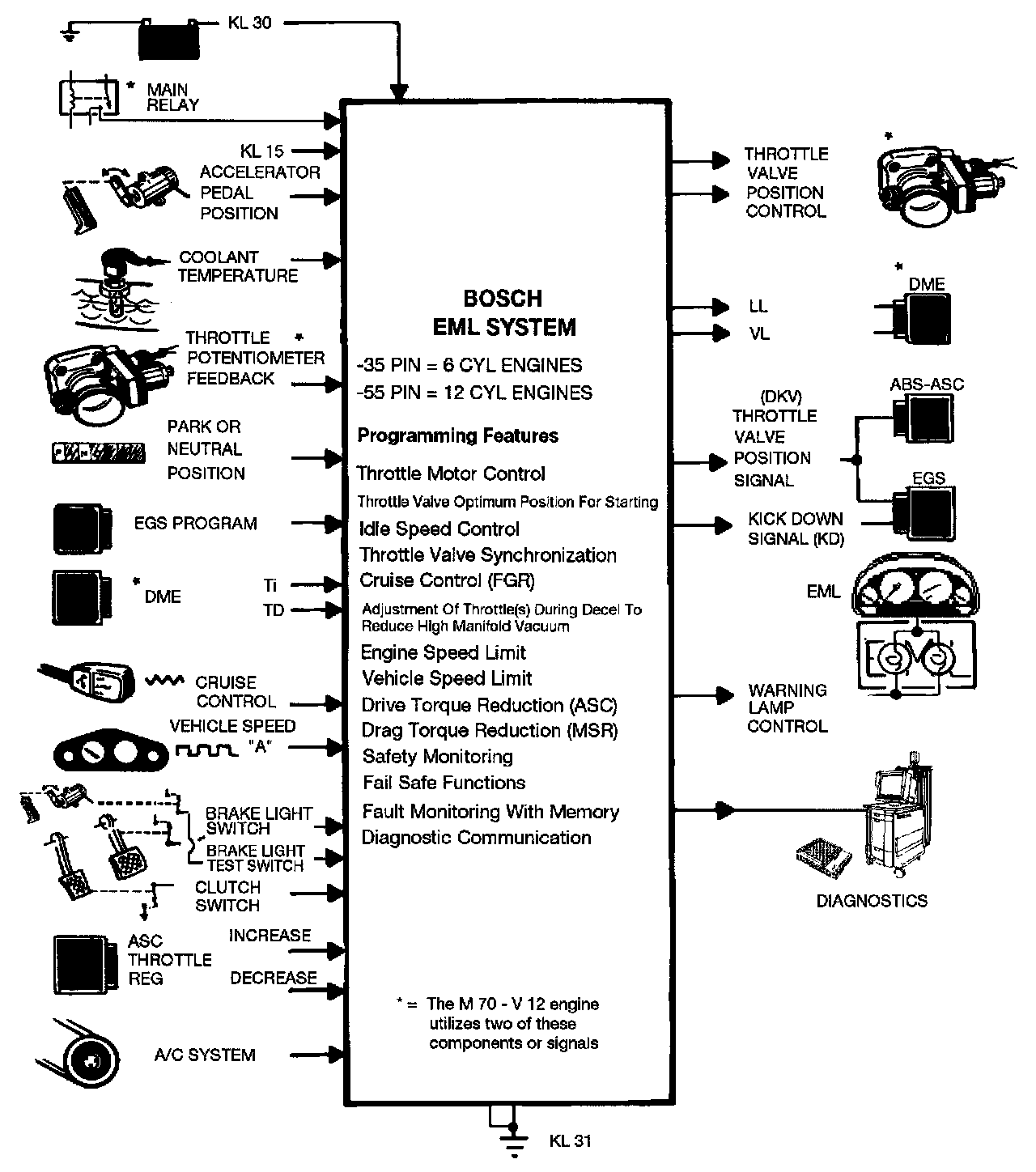

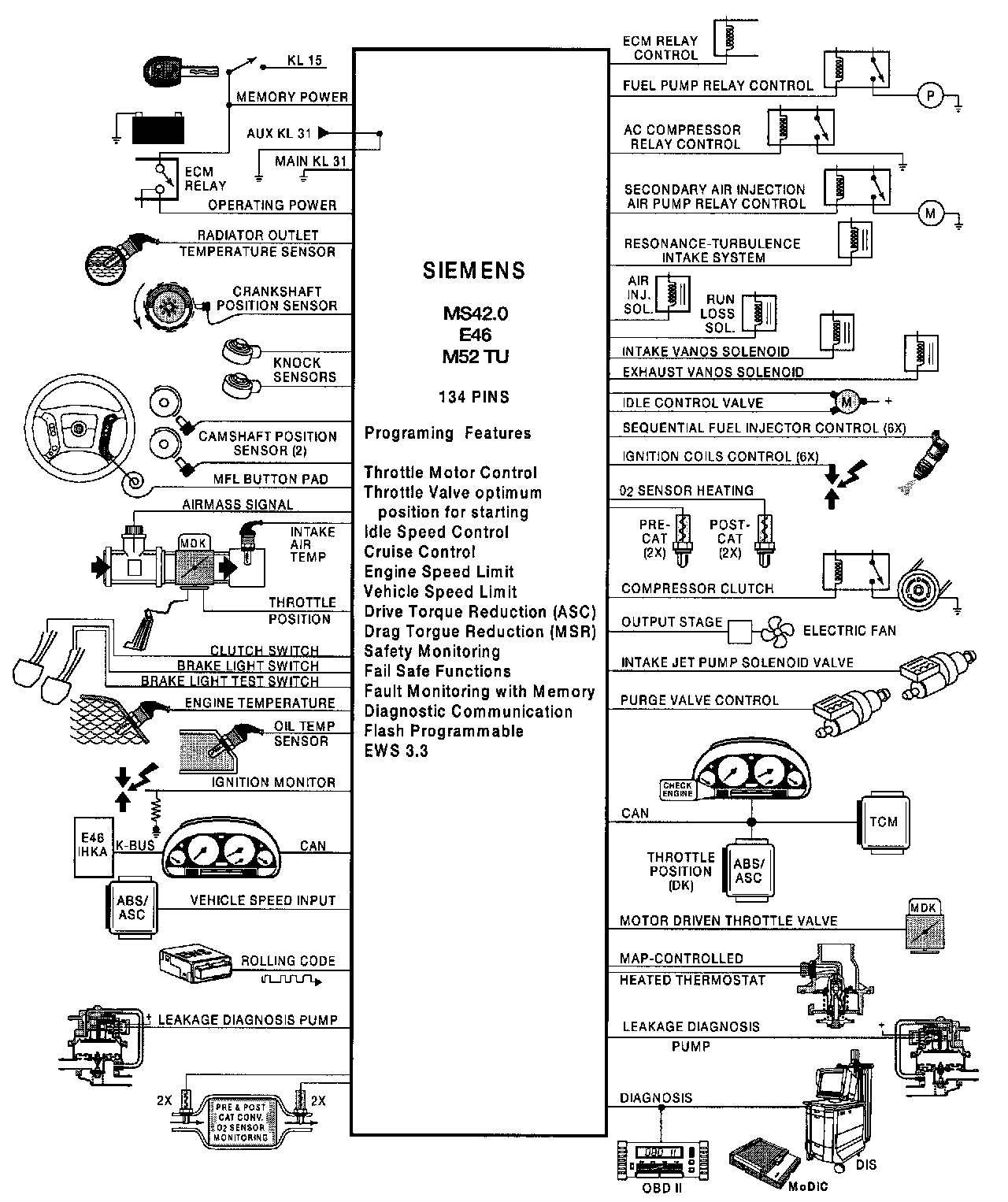

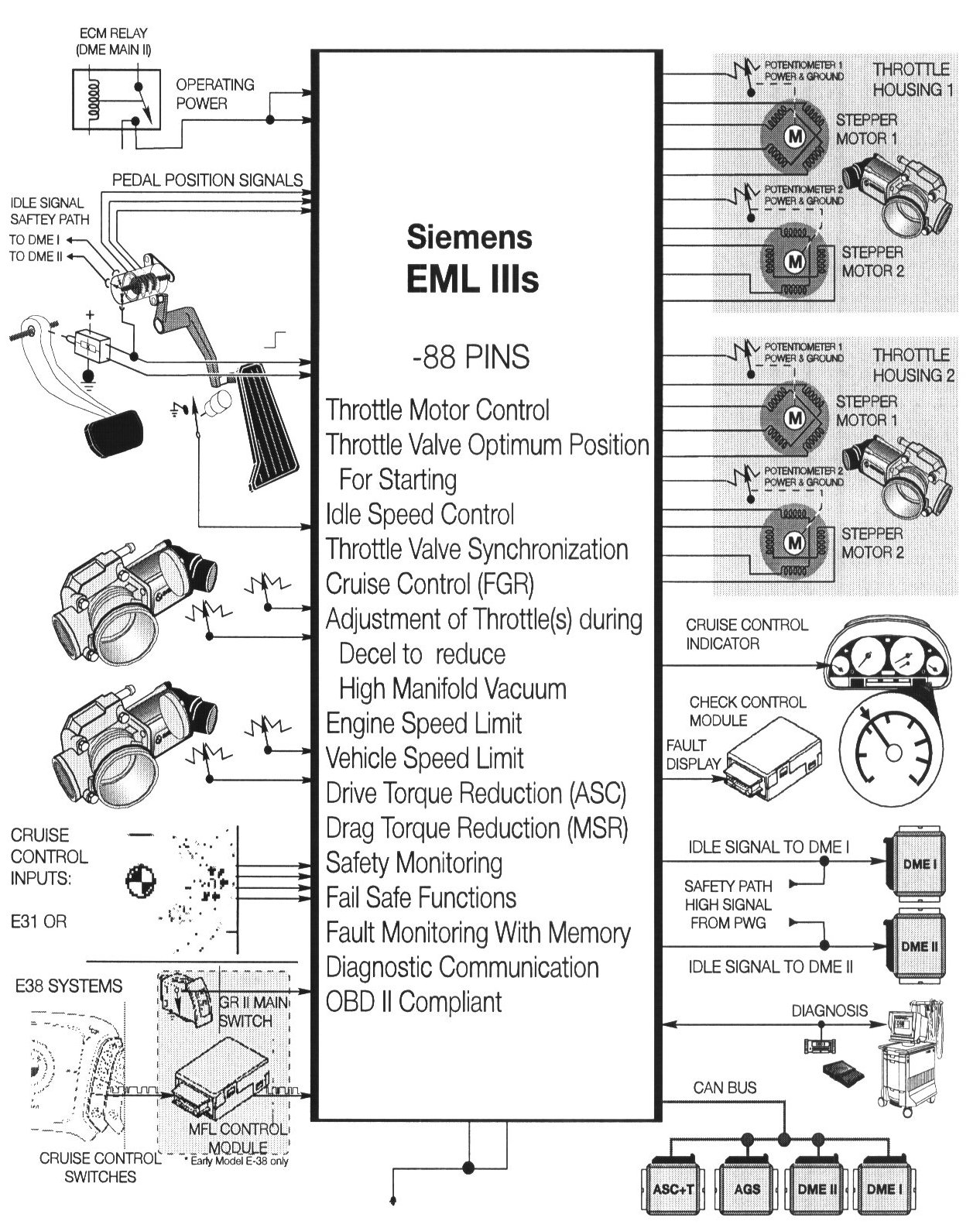

System Overview - I-P-O
System Overview - I-P-O
Inputs - Processing - Outputs
