Replacing Solar Sensor

Removing And Installing/Replacing Solar Sensor

Remove trim for instrument panel (upper section).

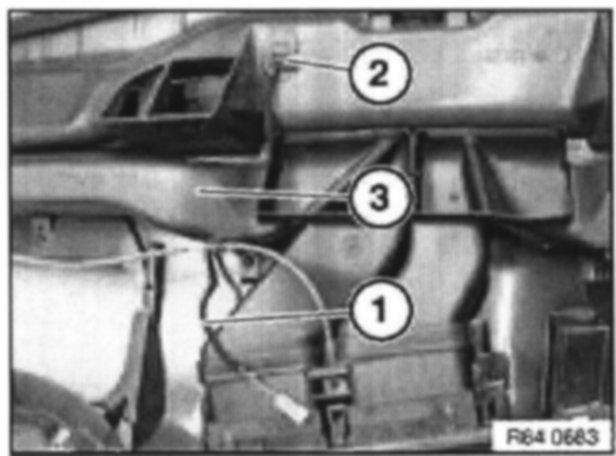

Feed out cable (1) from solar sensor (2) behind ventilation duct (3).







Detach solar sensor (1) upwards out of instrument panel.
