Wiper Motor, Replacement

Remove complete wiper console,
refer to Wiper Console, Replacement

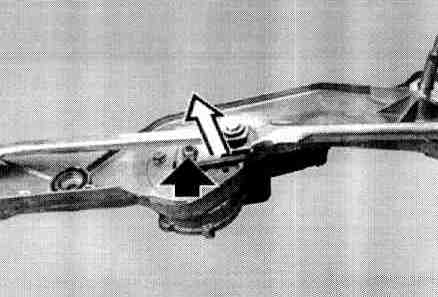

Unfasten nut and remove drive crank with linkage.

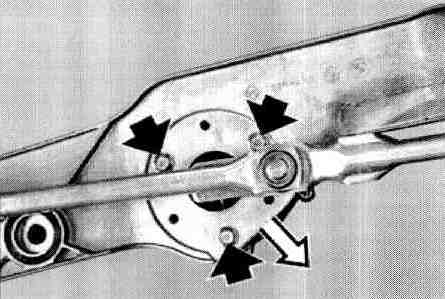

Unfasten screws and remove wiper motor from console.





Installation:.
Install wiper motor together with console. Fit connector and run wiper in rest position. Reinsert connector.

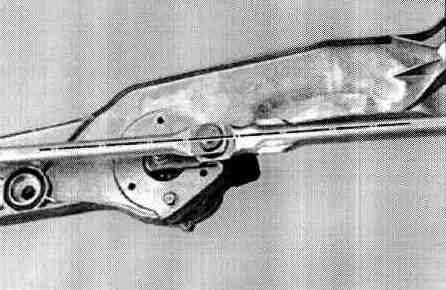

Align wiper linkage in one line, attach drive crank to wiper shaft and tighten down.
Refit the connector.
