Replacing Wiper Motor

Removing And Installing/Replacing Wiper Motor

Remove complete wiper console.

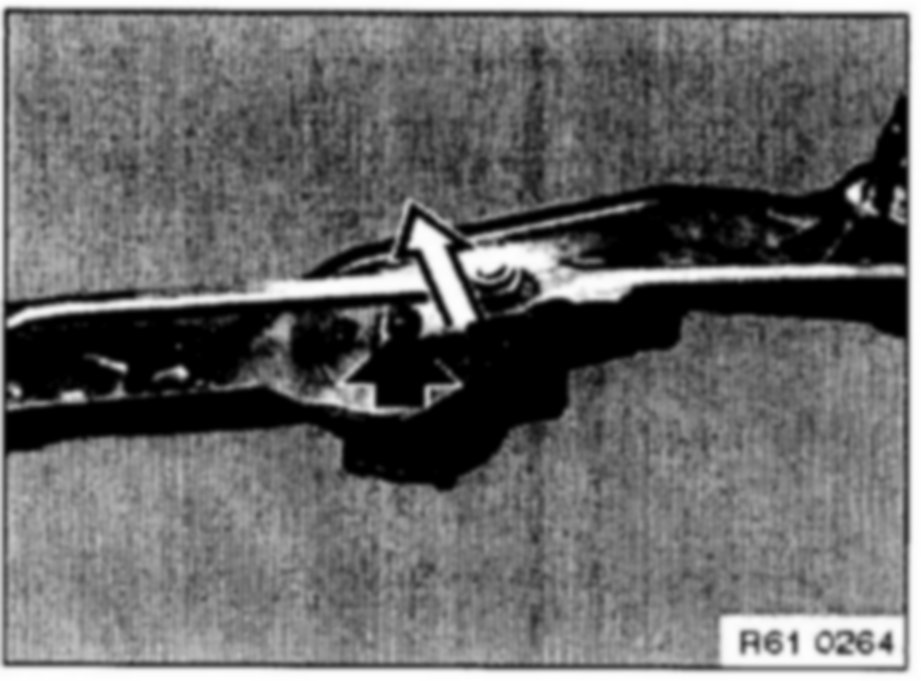

Unfasten nut and remove drive crank with linkage.

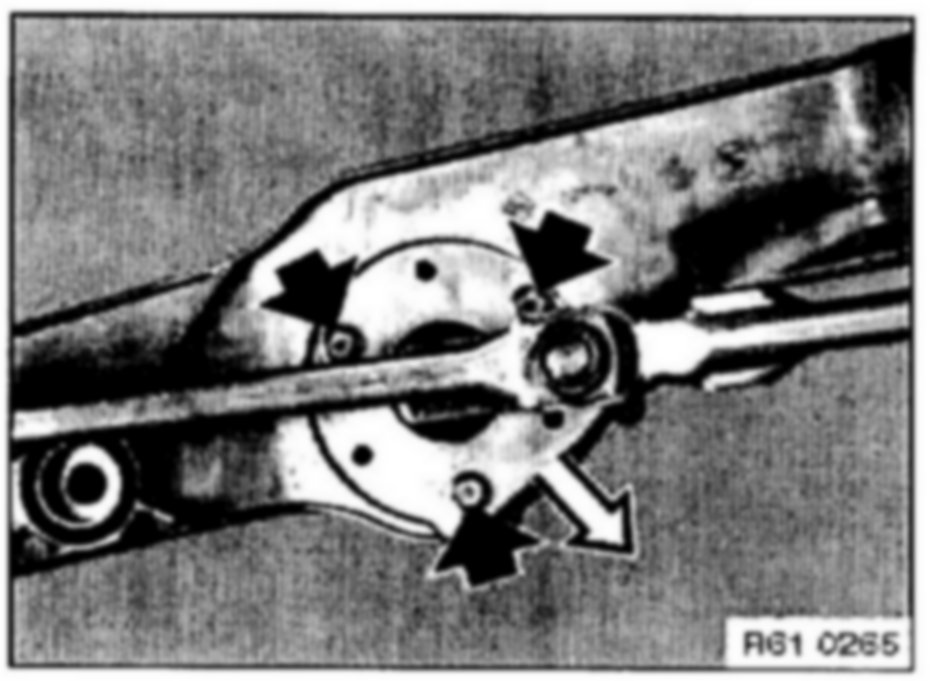

Unfasten screws and remove wiper motor from console.







Installation:

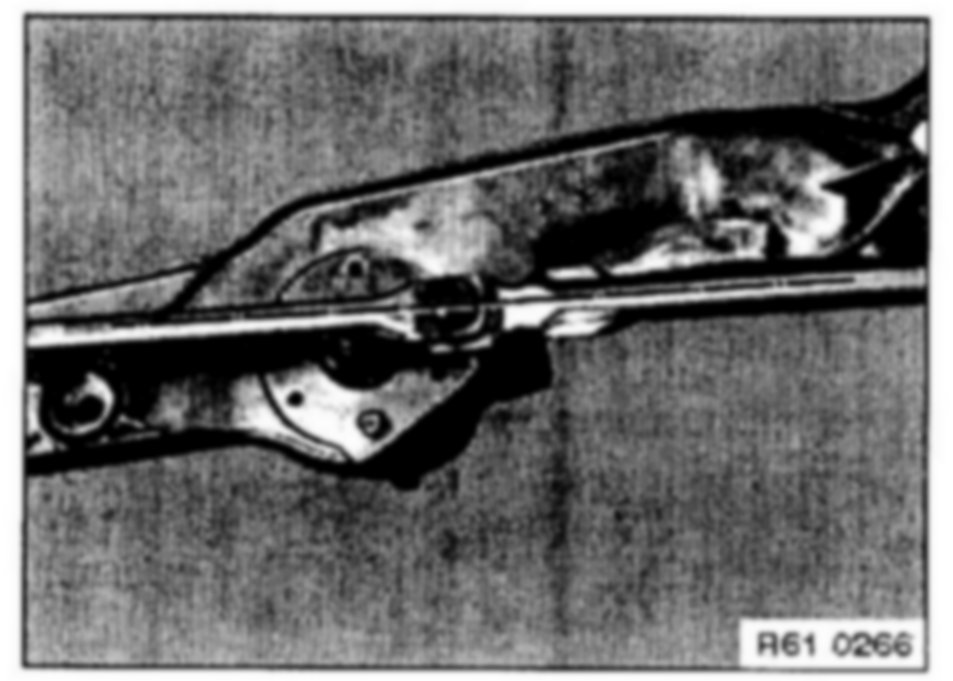

Install wiper motor together with console. Fit connector and run wiper in rest position. Reinsert connector.
Align wiper linkage in one line, attach drive crank to wiper shaft and tighten down. Comply with tightening torque.
Refit the connector.
