Replacing Rear Window Wiper Motor

Removing And Installing/Replacing Rear Window Wiper Motor

Remove trunk lid trim panel.

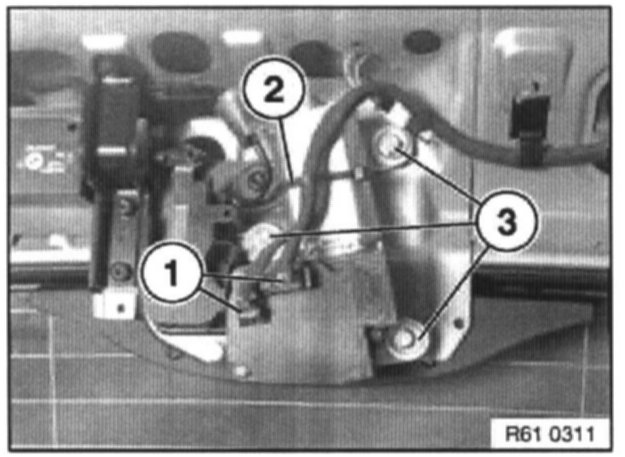

Remove connector (1). Cut open cable ties (2). Unfasten screws (3) and remove wiper motor.

Installation instructions:
Install wiper motor, but loosely tighten screws (3). Observe tightening torque.







Make sure that end stop on wiper shaft bearing is correct.

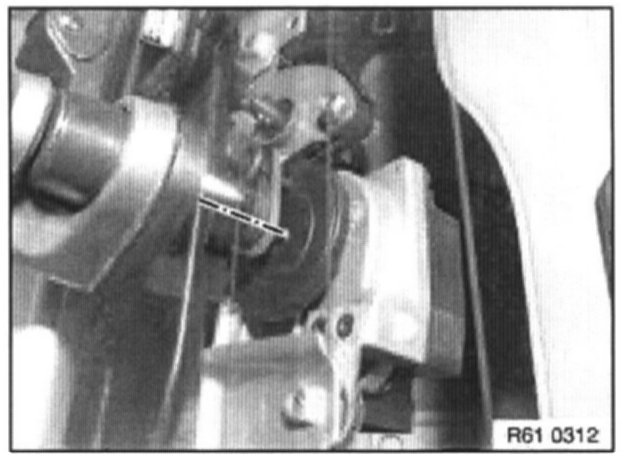

Turn wiper motor so that center point of drive disk is aligned with center point of wiper axis. To do this, always use special tool 61 1 320.
