Rear Wiper Motor, Replacement

Removing trim panel from trunk lid.

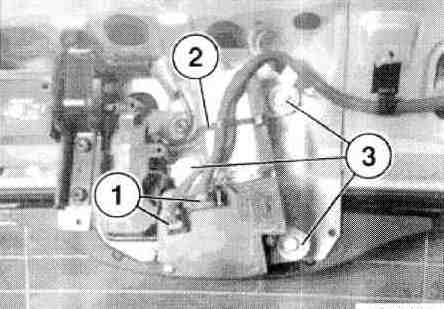

Remove connector (1). Cut open cable Les (2). Unfasten screws (3) and remove wiper motor.

Installation:
Install wiper motor, but loosely tighten screws (3).





Make sure that limit stop on wiper axis bearing is correct.

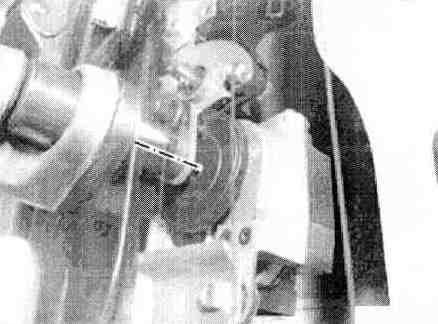

Turn wiper motor so that center point of drive disk is aligned with center point of wiper axis. To do this, always use special tool 61 1 320.
