Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door

51 21 330 Removing And Installing/Replacing Window Cavity Cover Strip On Inner Front Door

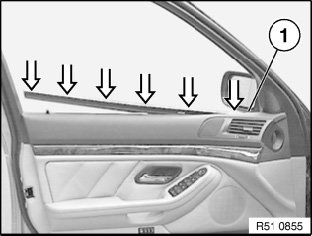

Remove front left or right door trim.
Service and Repair

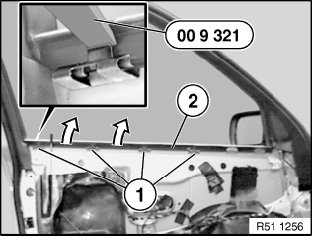

Beginning from rear, raise clips (1) with special tool 00 9 321 (folding leg).
Press cover strip (2) upwards out of clips.

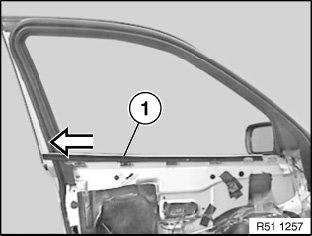

Remove cover strip (1) past window frame towards rear.







Installation:

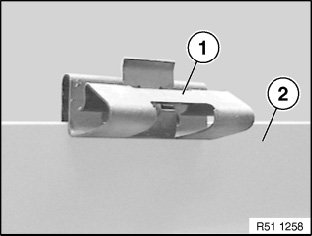

If necessary, remove faulty clips (1) from inner door panel (2) and replace.







Installation:
- Remove front left or right door trim.
- Coat cover strip with rubber protection coating agent.
- Begin with assembly at front (1).
