Lever Replacement

Remove selector lever, refer to Lever Removal and Installation.

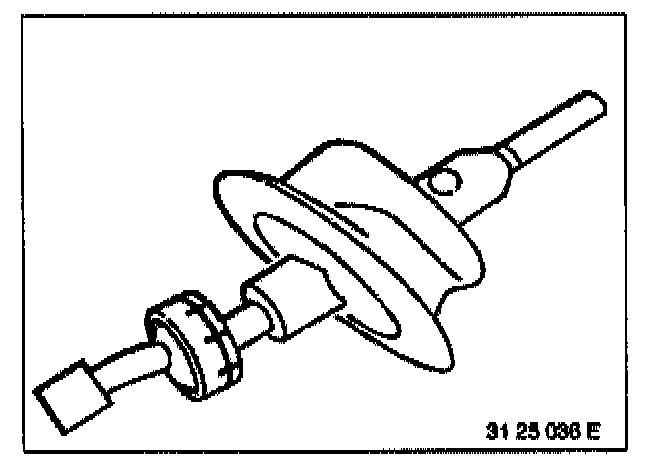

Detach mount from selector lever.

Installation:

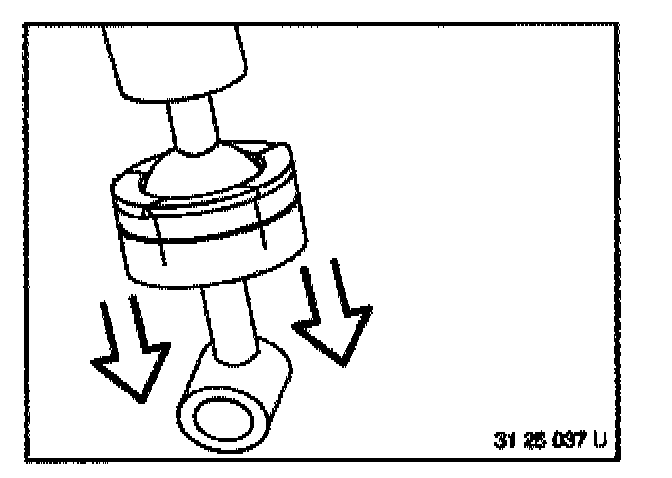

Grease ball joint using suitable grease.





Detach rubber gaiter from selector lever.





Installation:

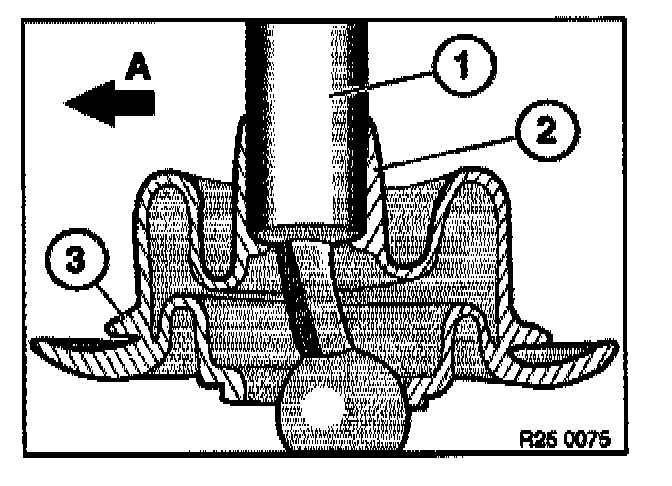

Degrease selector lever (1).
Coat rubber bellows on inside of shaped section (2) with Circolight or equivalent.
Pull rubber gaiter from above over selector lever and align. Arrow (3) on rubber gaiter must point in direction of travel (A).
