Replacing Cable For Gear Selector Lever

Remove shift tower, refer to Shift Lever A/T, Service and Repair.





Pull retaining plate (1) off cable.
Lift retaining disk (2) out of selector lever.

Installation:
Replace retaining disk (2).

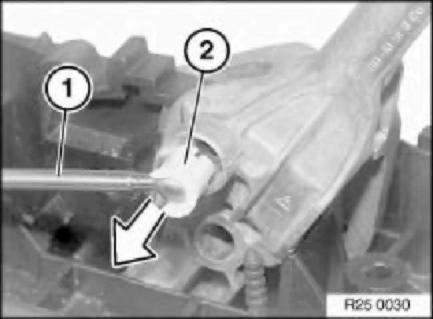

Pull cable (1) out of ball shell (2) out of selector lever

Installation:
Replace ball shell (2).

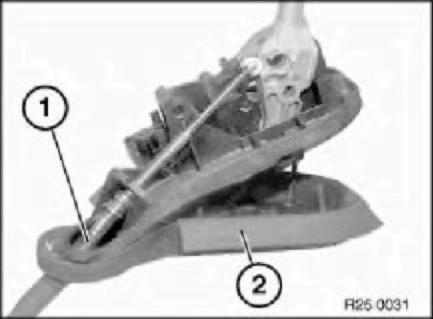

Remove cable (1) with rubber sleeve (2) from shift tower.
