Pressure Regulating Solenoid: Service and Repair

Note: Transmission oil sump removed.

Remove and install transmission oil sump, refer to Transmission Pan, service and repair.
Remove and install/replace transmission oil screen, refer to Transmission Filter, Service and Repair.
After completing work, top up ATF level.
Check/top up fluid level in automatic transmission, refer to Transmission Fluid, Testing and Inspection.

Caution:
It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

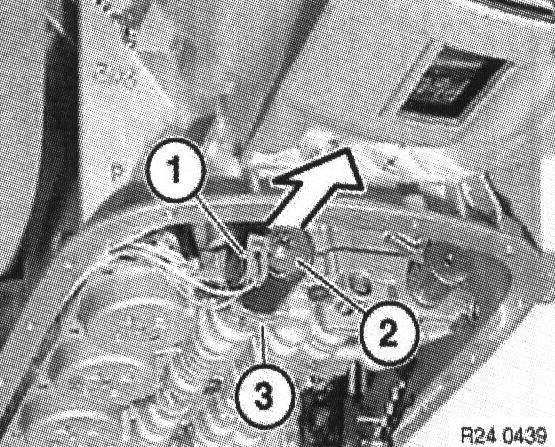

Disconnect plug (1) from pressure regulator (2) for main pressure.
Remove retaining spring (3).
Remove pressure regulator (2) for main pressure.

Installation:
Coat new pressure regulator (2) for main pressure with automatic transmission fluid.
