Parking Pawl: Service and Repair

Note: A5S 360R (GM5) transmission.

Remove transmission extension housing.
After completing work, top up ATF level.
Check/top up fluid level in automatic transmission.

It is absolutely essential to use the approved automatic transmission fluid in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

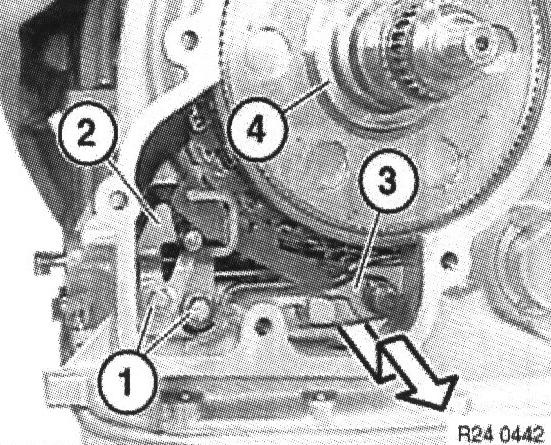

Secure shim ring (4) against slipping out with grease.
Release screws (1).
Remove guide bracket (2).
Remove spring (3) from parking lock.
Tightening Torque, refer to Automatic Transmission/Transaxle, Specifications.

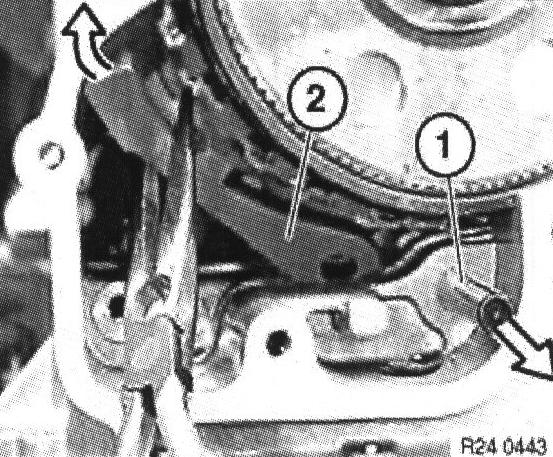

Caution: To prevent locking lever (2) from falling into transmission oil sump, secure it e.g. with pointed pliers.

Remove guide pin (1).
Remove locking lever (2).
