Replacing Power Steering (Basis)

32 13 061 Replacing power steering (Basis)

Caution! Adjust front axle after assembly.

Note: Removal differs depending on scope of parts supplied in steering gear.

1. Without rubber gaiter:

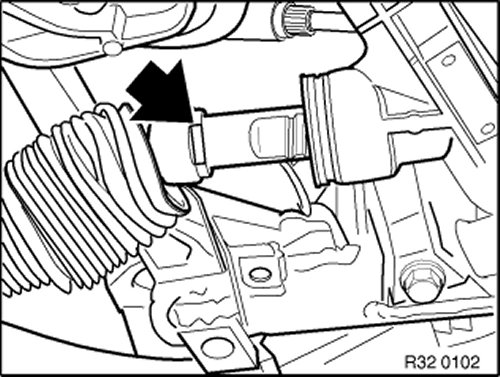

Unfasten stripes and slide sleeves off steering gear. Insert rack as far as possible and unfasten left/right track rod joint.

Installation:
Insert rack as far as possible and screw on track rod.
Tightening torque 32 21 2AZ.

2. With rubber gaiter:

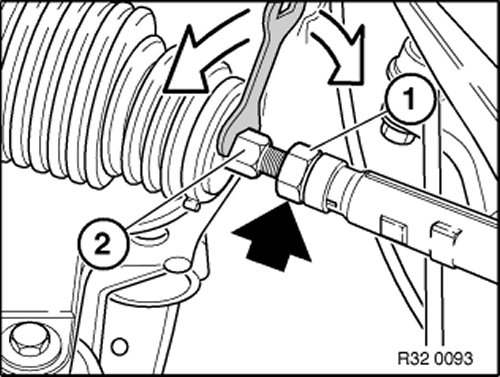

Release lock nut (1) on steering tie rod.
Screw tie rod (2) out of tie rod end.

Remove steering gear. Service and Repair

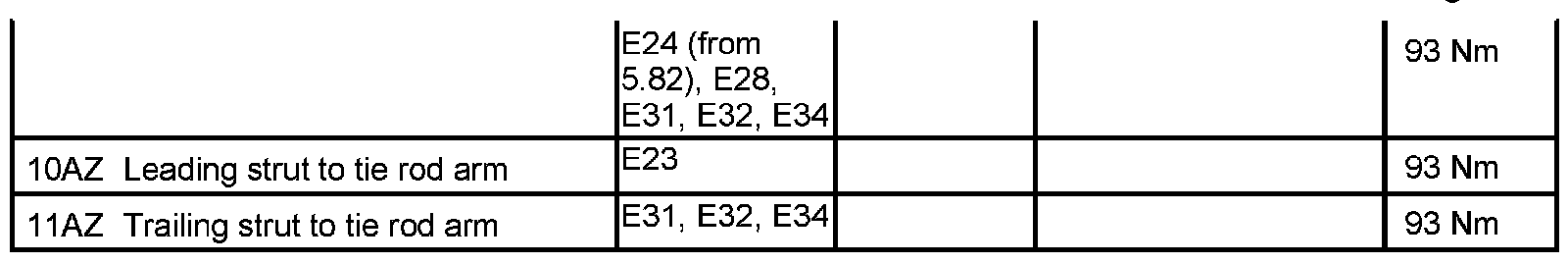

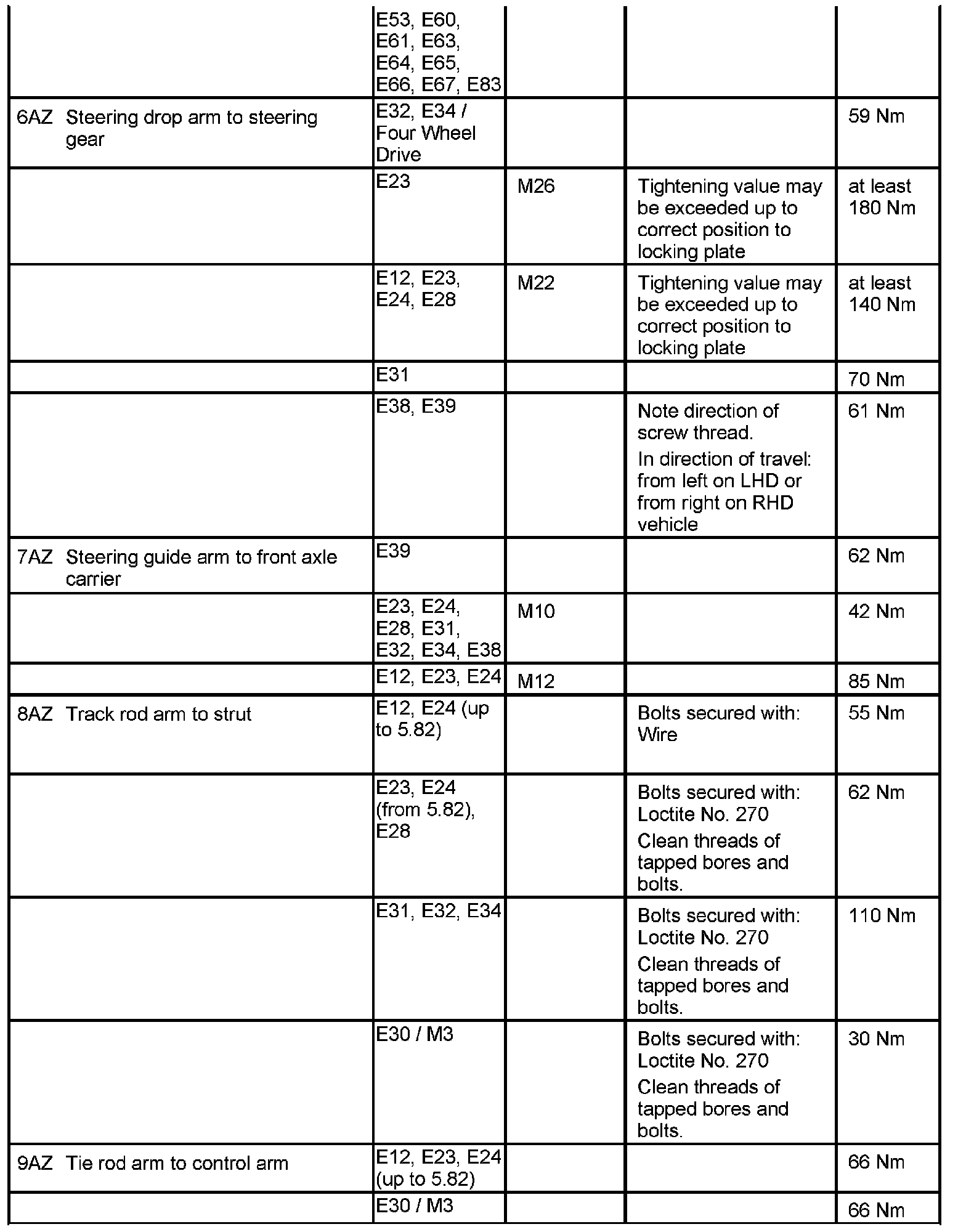

Tightening Torques
