Upper

Replacing Upper Section Of Steering Column Trim
Move steering column in "bottom" and "extended" position.

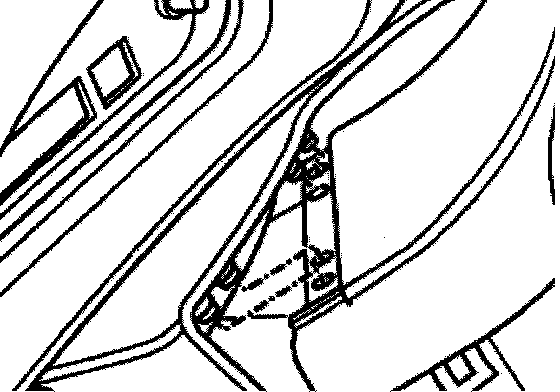

Unscrew screw.

Installation:
Fit new expanding nut.

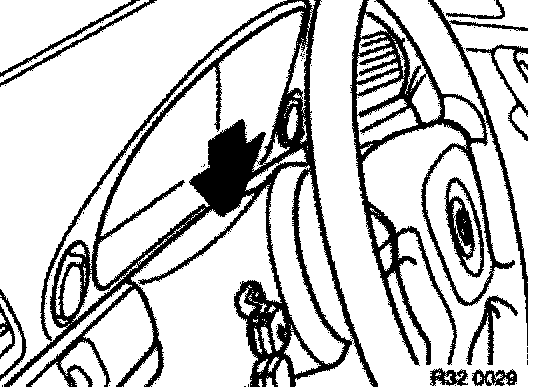

Press both sides of marked area on top section inwards and remove by pulling upwards.

Installation:

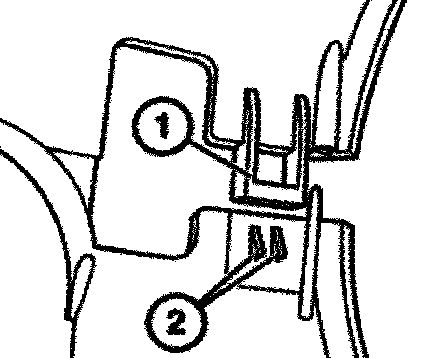

Locking unit (1) must locate in the hook (2).

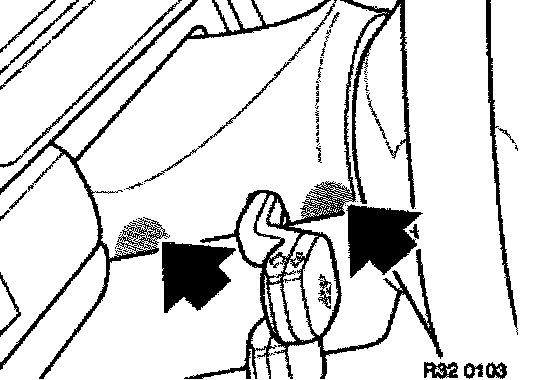

Unclip and remove upper section.

Installation:

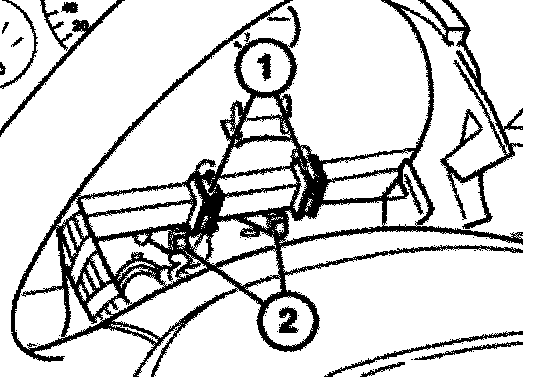

Insert hook (1) in mounts (2).
