Lower

Removing And Installing/Replacing Lower Section Of Steering Column Trim





Unfasten screws.

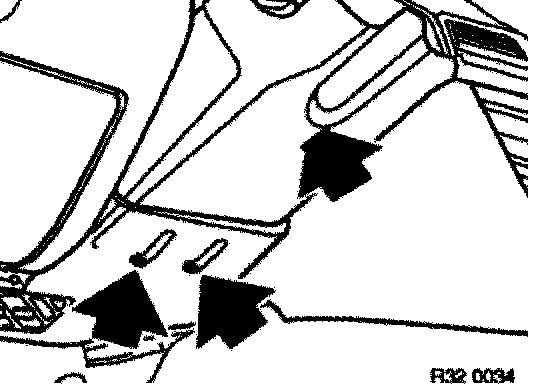

Press both sides of marked area of upper section of steering column trim inwards and pull lower section downwards to remove.
If necessary, unclip leather gaiter from trim.

Installation:





Locking unit (1) must locate in the hook (2).
