A5S 360R (GM 5)




A5S 360R (GM 5)

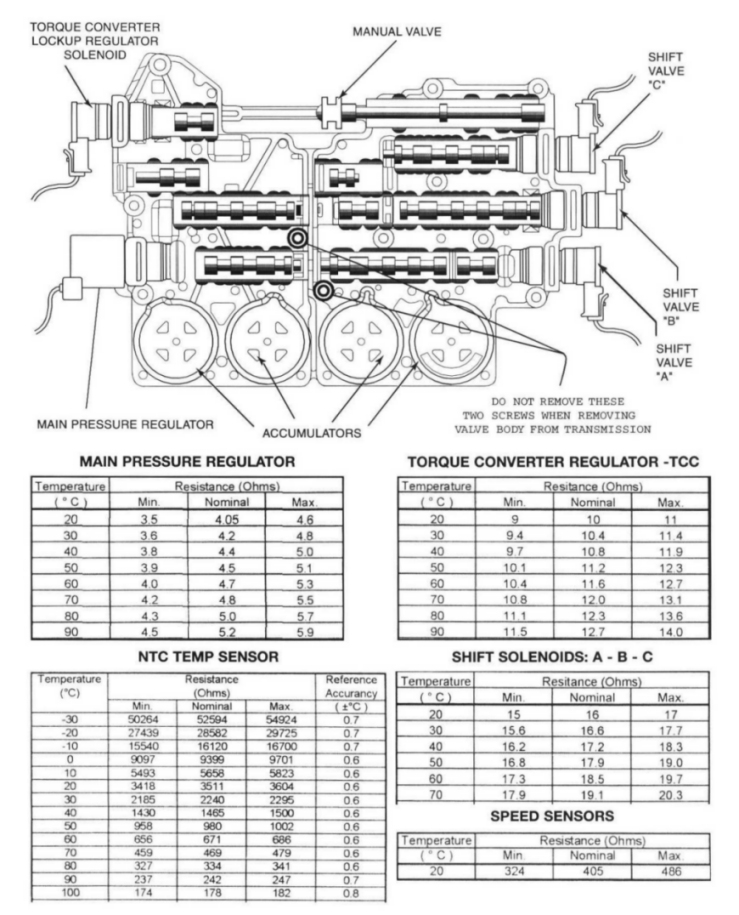

Valve Body Component Identification

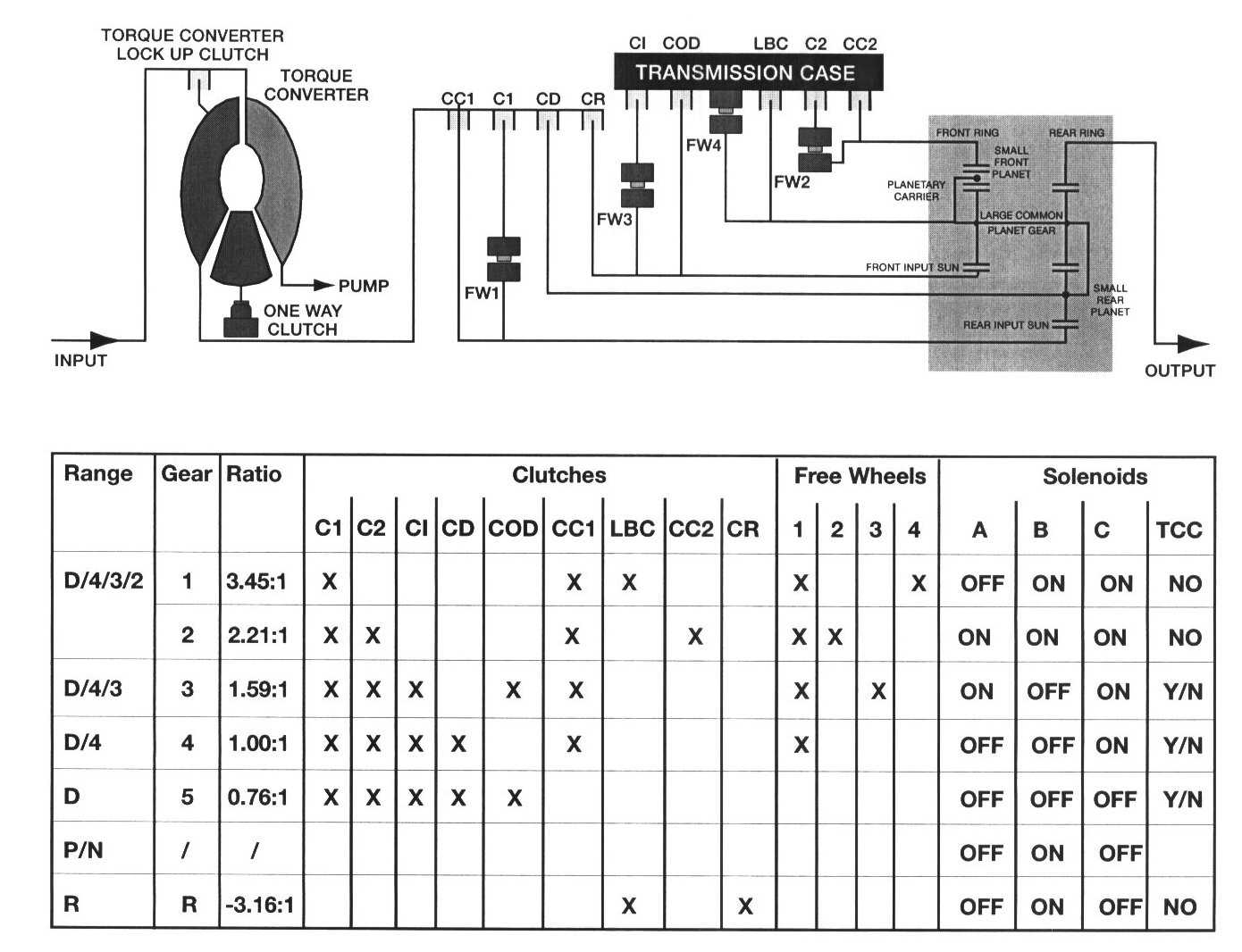

A5S 360R Power Flow

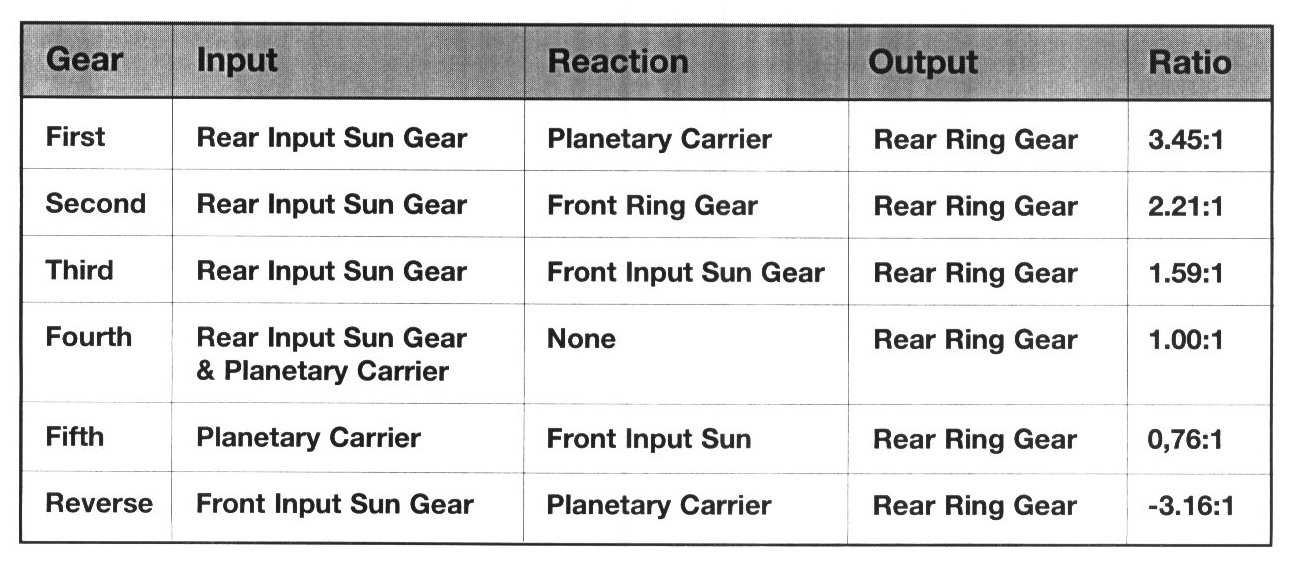

Planetary Gearset "Input - Reaction - Output" Chart

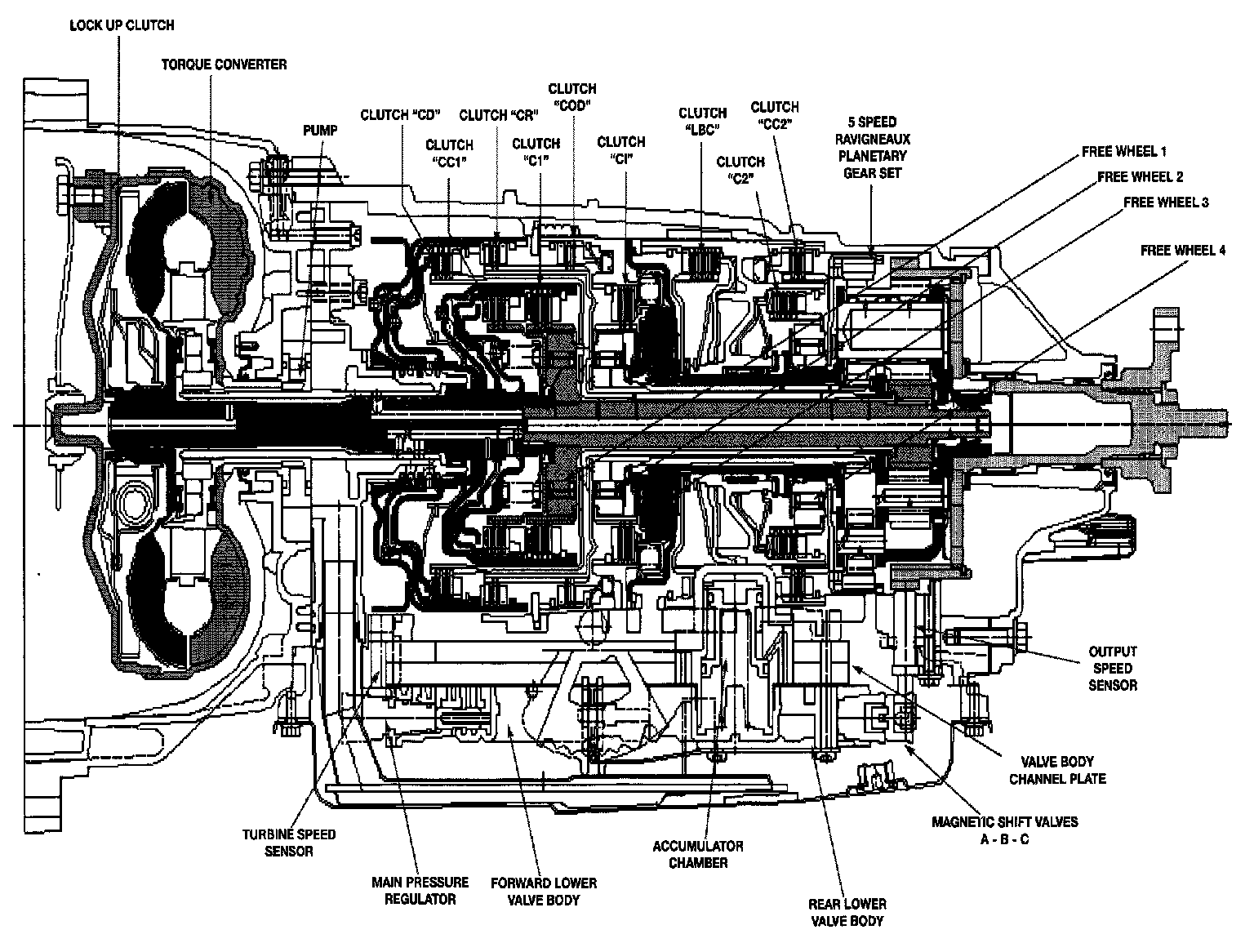

Component Locations
