Fog/Driving Lamp Bulb: Service and Repair

Replacing Halogen Bulb For Left Or Right Front Fog Lamp


WARNING!
Follow instructions for handling light bulbs (exterior lights).


Remove fog lamp.

Up to 08/2000:

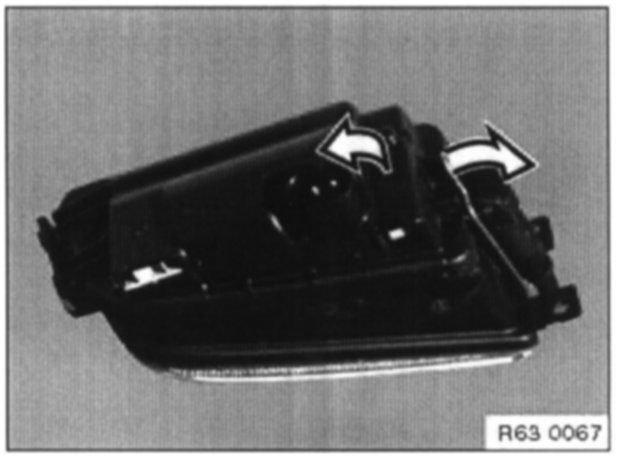

Open retaining bracket and fold up cover.

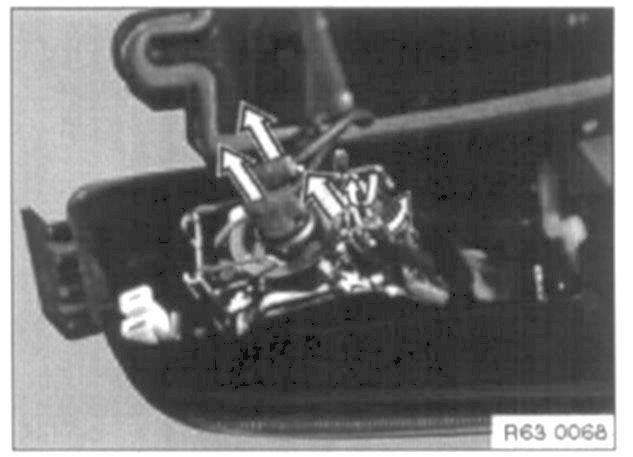

Disconnect plug connection unhook clip and take out bulb inside.

From 09/2000:

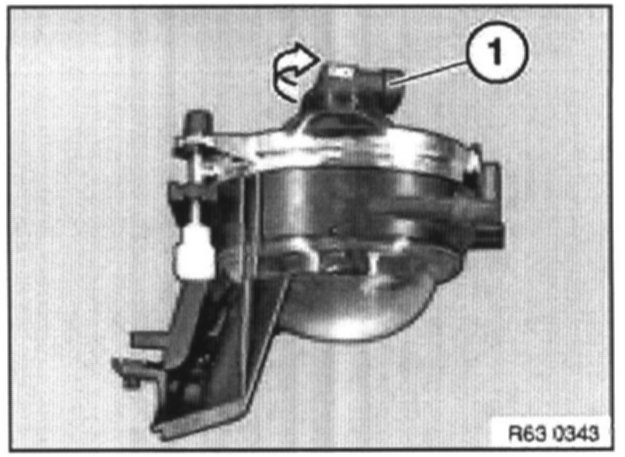

Turn bulb holder (1) in direction of arrow and remove.
Remove bulb inside from bulb holder (1).

All:

Installation:
Note type of bulb.
