Replacing Complete Interior Light Front or Back

Removing And Installing/Replacing Complete Interior Light

Front:

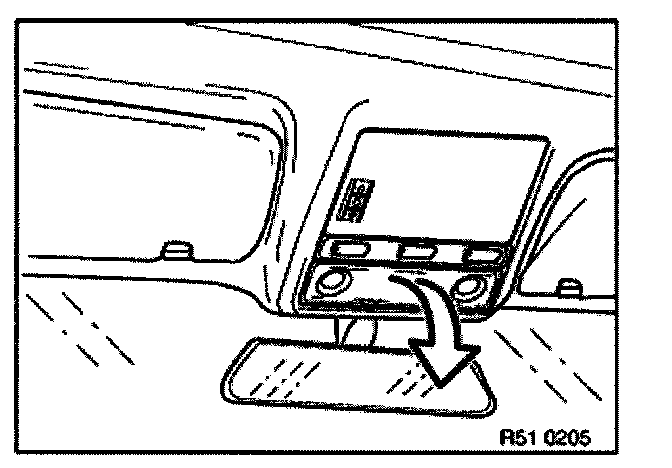

Lever out ceiling light in direction of arrow.
Disconnect plug connection underneath and remove ceiling light.

Rear (touring only):

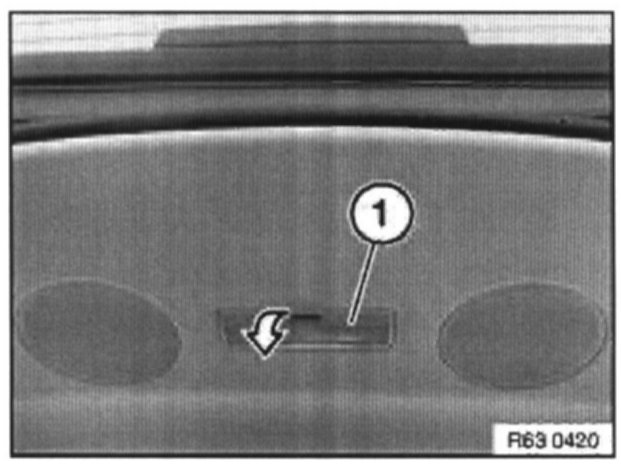

Lever out ceiling light (1) in direction of arrow.
Disconnect plug connection underneath and remove ceiling light (1).
