Replacing Drier Flask For Air Conditioner

Removing And Installing/Replacing Drier Flask For Air Conditioner


NOTE:
A/C system is drawn off.
Follow instructions for dryer bottle replacement.


Remove complete right headlight.

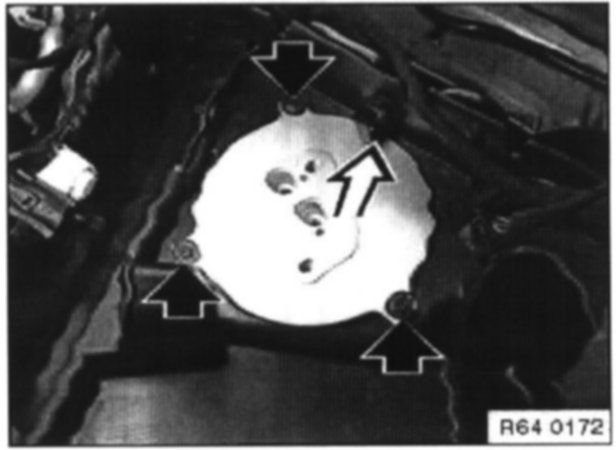

Remove holder for headlight mounting.







Unfasten screws.


NOTE: Pull pressure and intake pipes upwards and fit with plugs if A/C system remains open for longer than one hour.


Installation:
Replace sealing rings.







Unfasten screws and pull drier flask upwards to remove.


NOTE: In warranty cases, seal line openings with plugs of new dryer bottle.
