Removing and Installing Cassette (Condenser For Air Conditioner)

Removing and Installing Cassette (Condenser for Air Conditioner)



Remove Radiator

Note:
The condenser for the A/C system is integrated in the cassette
At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.







Disconnect lines for power steering and if necessary engine and transmission oil coolers.

Installation:







Replace sealing rings.








Draw off refrigerant from A/C system.

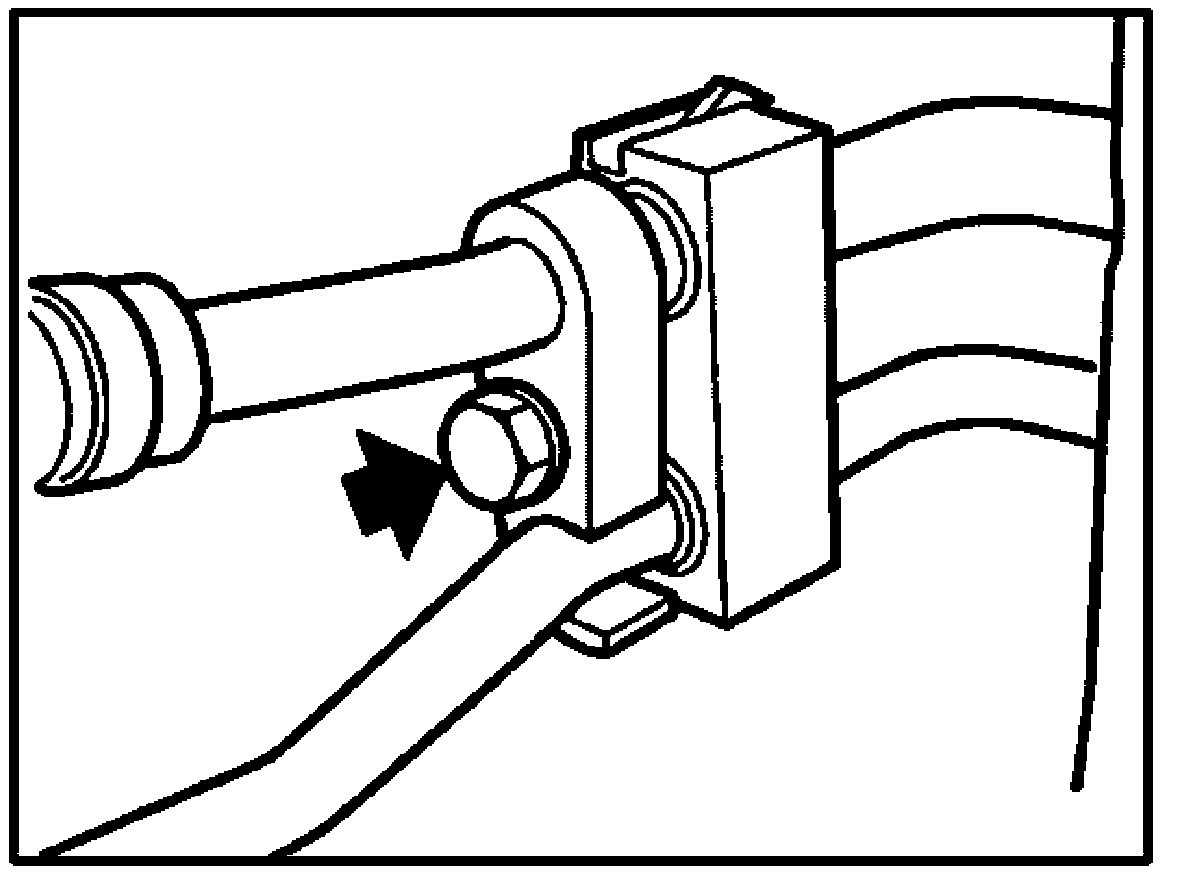

Remove lines from Air Conditioner.

Installation:

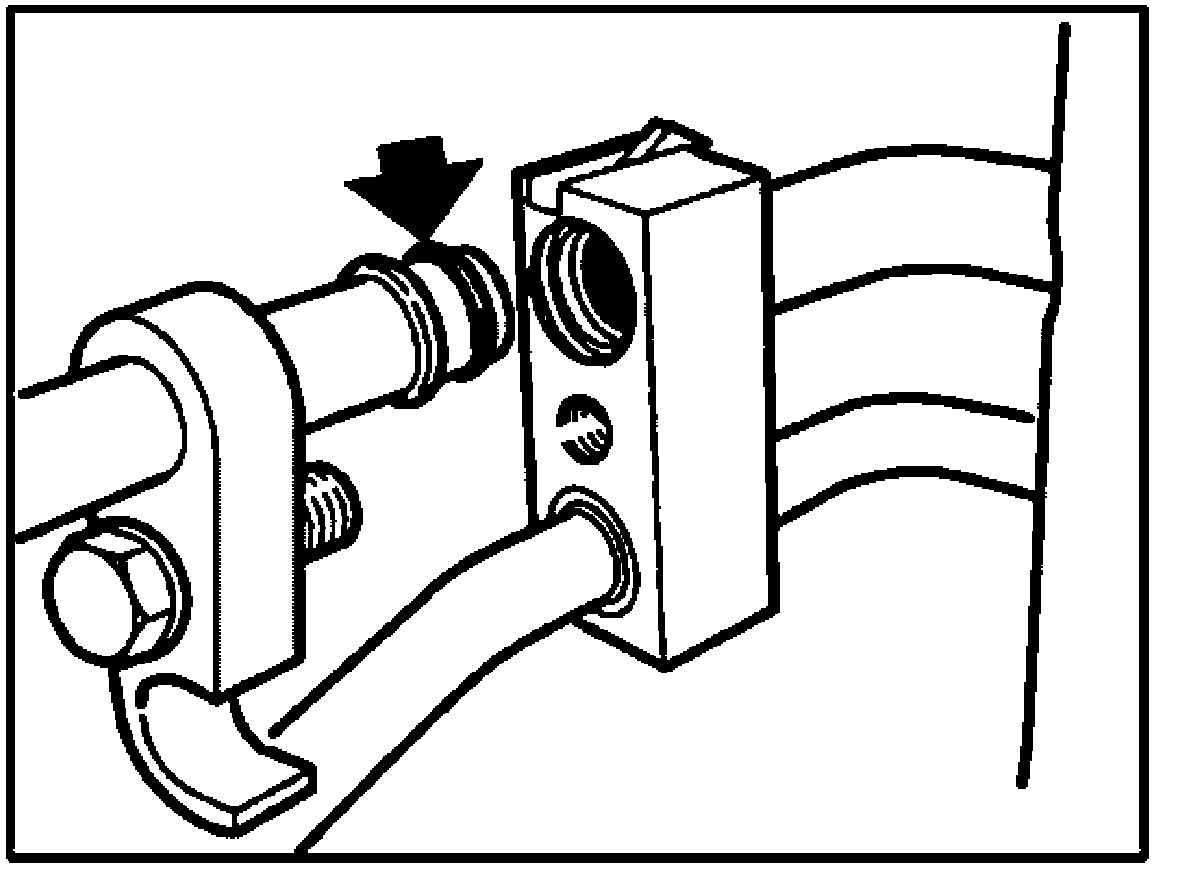

Replace sealing rings.

Evacuate and fill A/C system

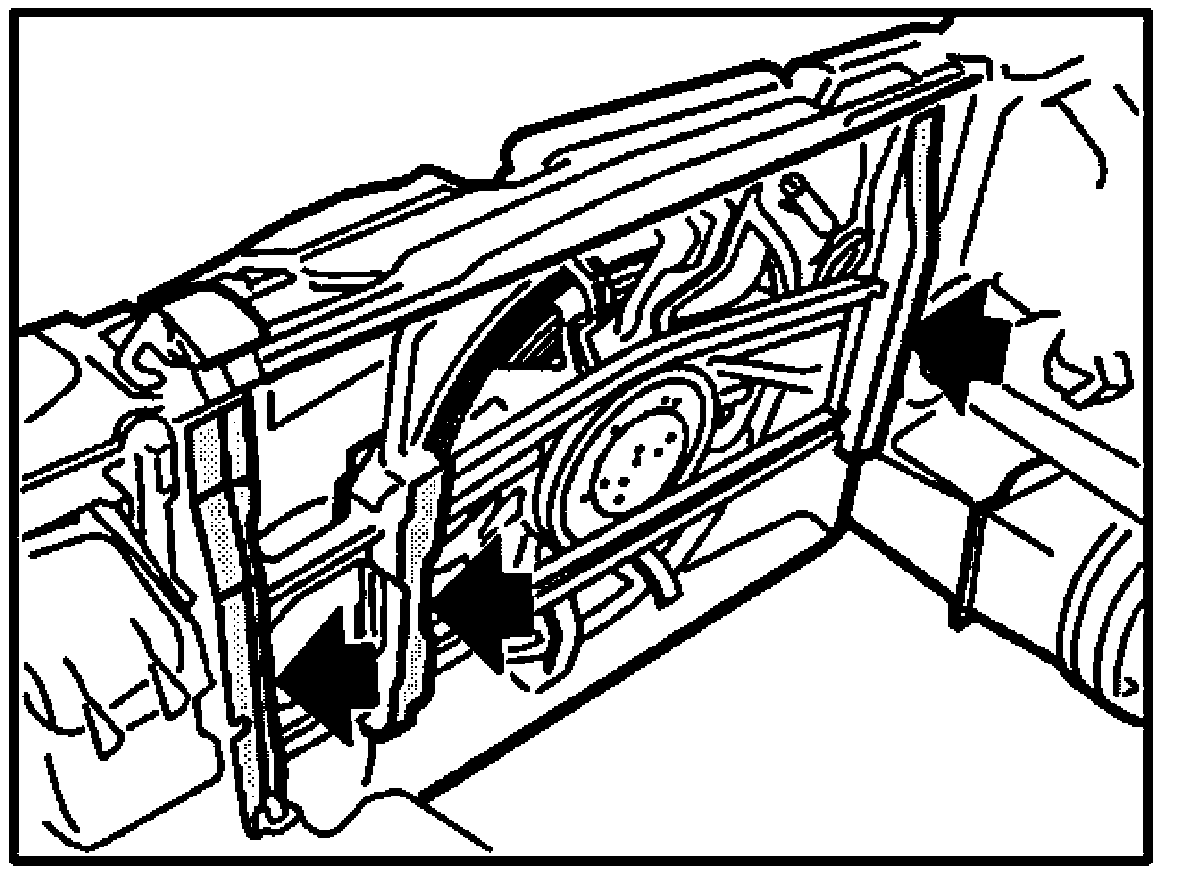

Tilt cassette backwards slightly and lift upwards to remove

Installation:







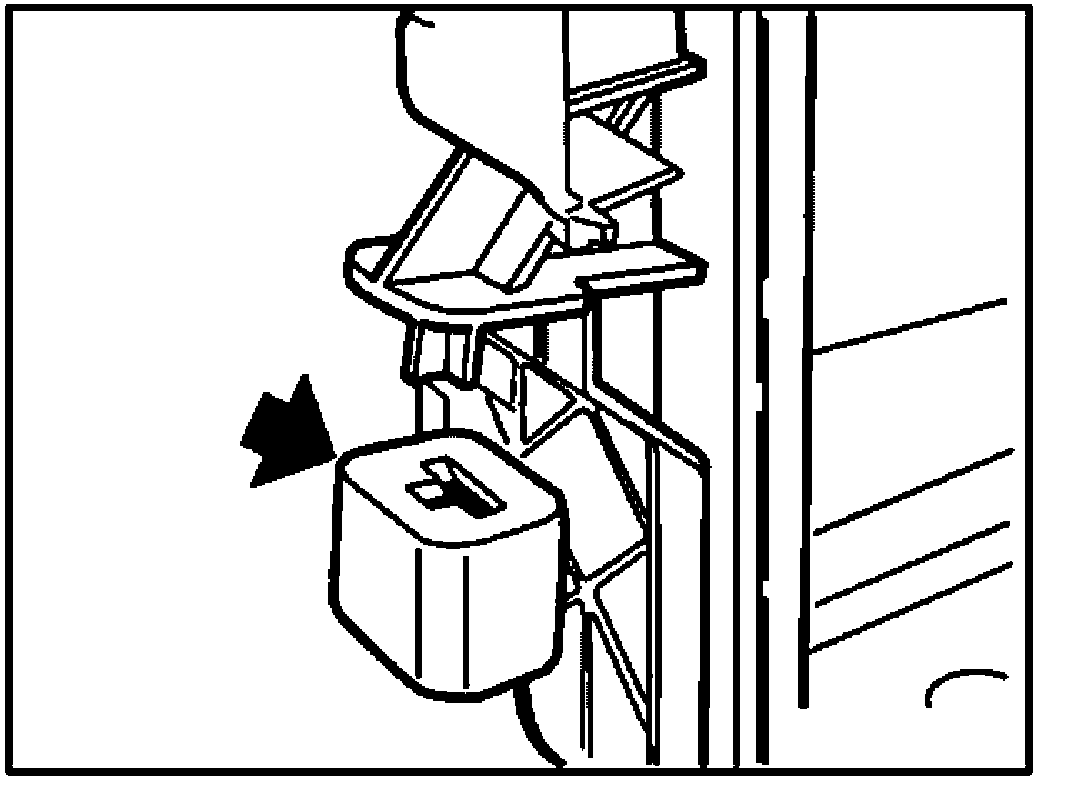

Note rubber mounts on front wall.

Installation:







Check rubber mounts on left and right sides.

Installation:

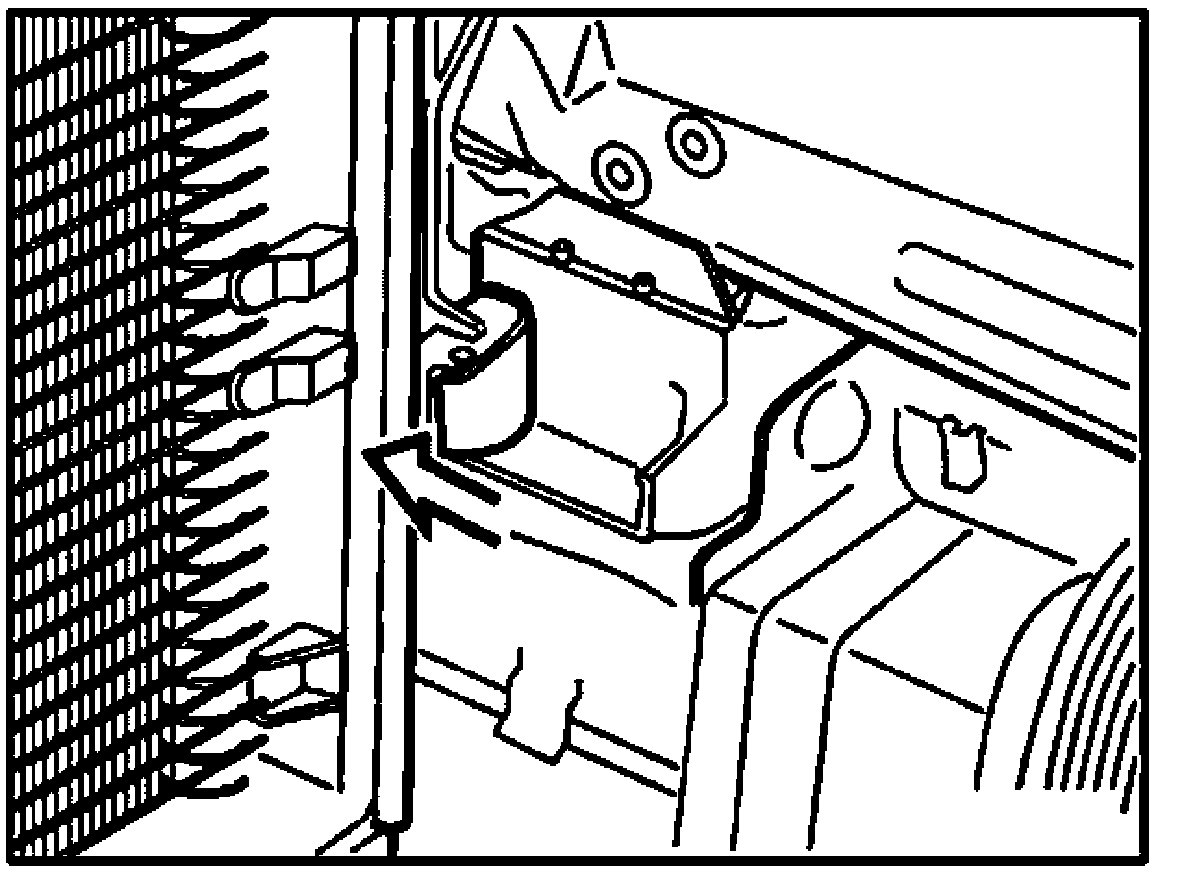

Install cassette in left and right retainers and push forwards as far as it will go.


Installation:

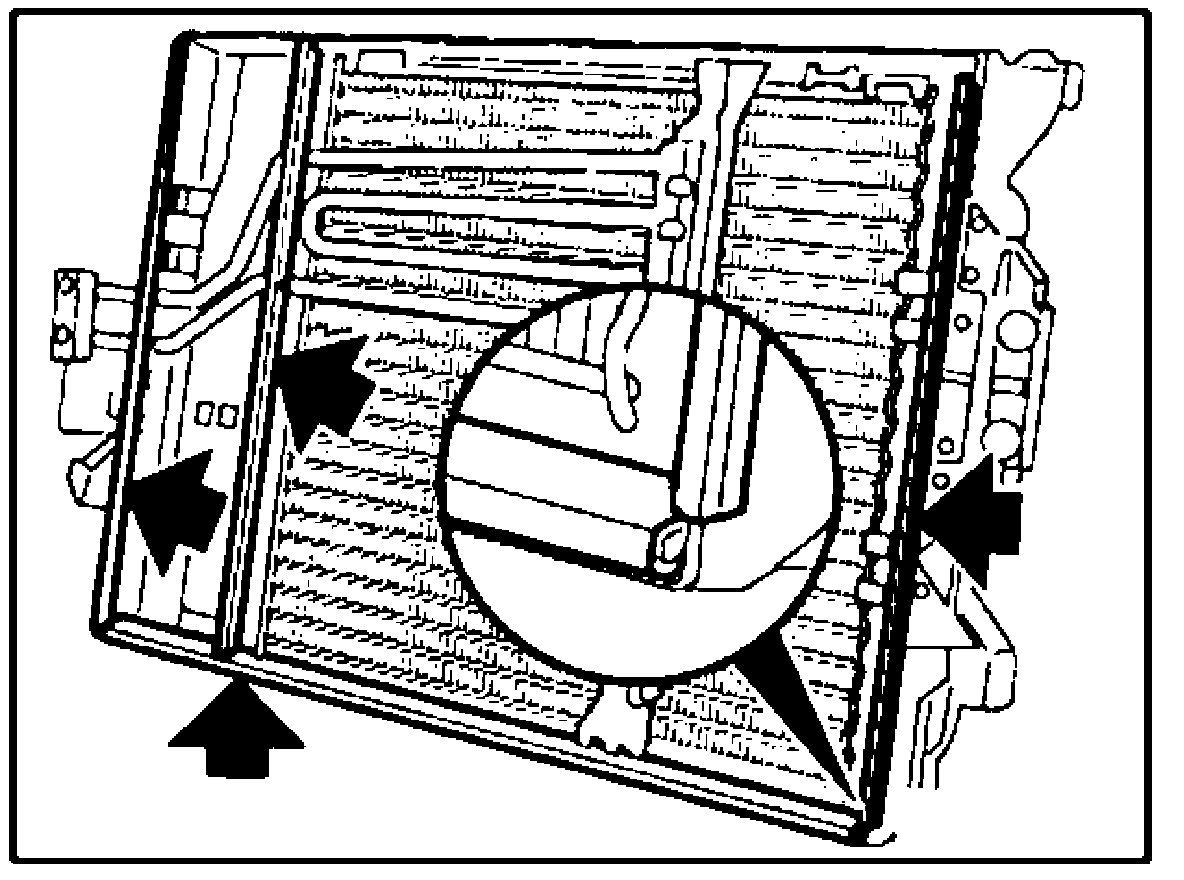

Check rubber profile seals.
