Auxiliary Blower Motor: Service and Repair

Removing And Installing/Replacing The Rear Fan Completely

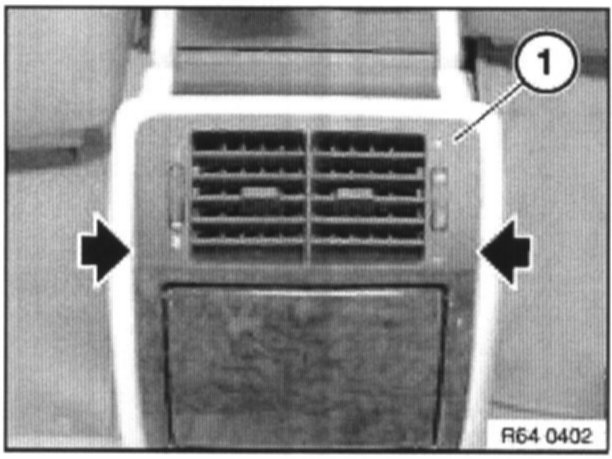

Unclip fresh air grill (1) at sides and pull out.

Installation:
When inserting fresh air grill: do not lay cables in front of air duct.

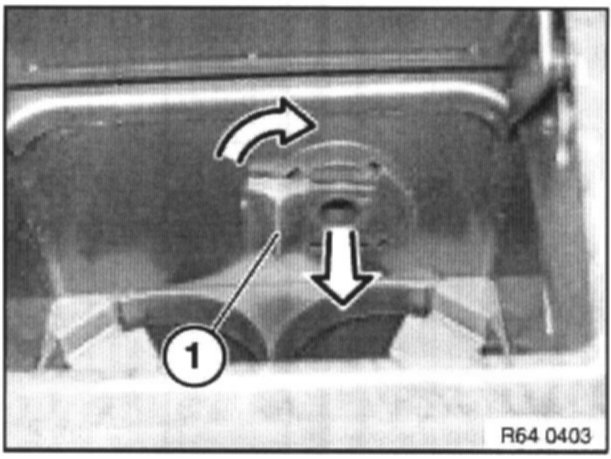

Turn adapter (1) clockwise, unlock and pull out towards rear.

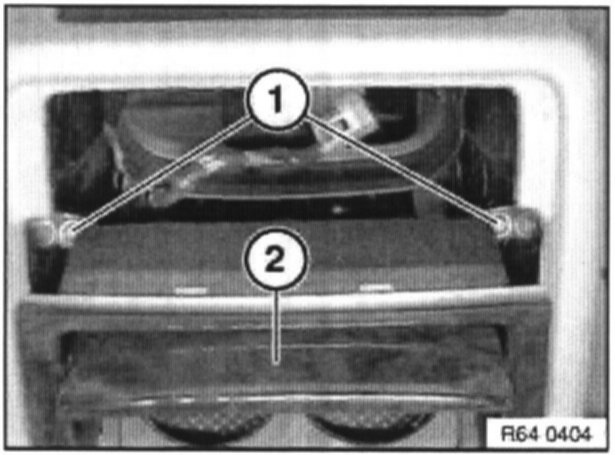

Unscrew bolts (1). Pull out storage tray (2) towards top.

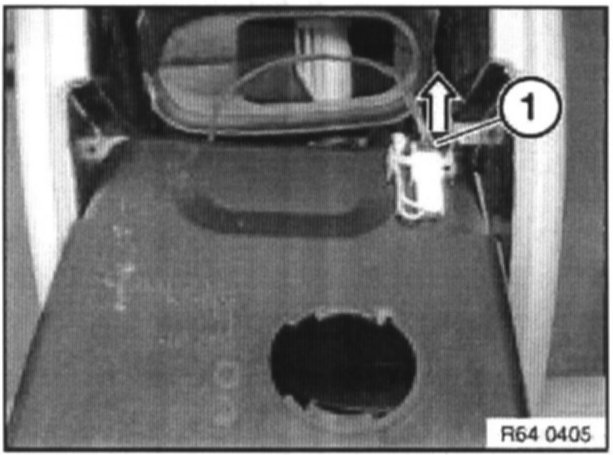

Unfasten plug connection (1).

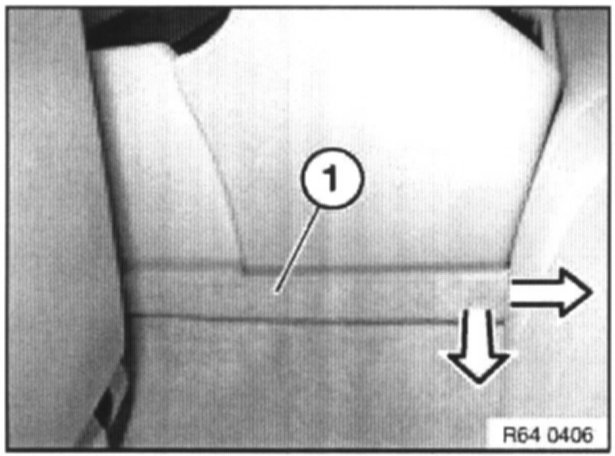

Unclip side carpet (1), left and right, at rear and pull out of clips towards rear.

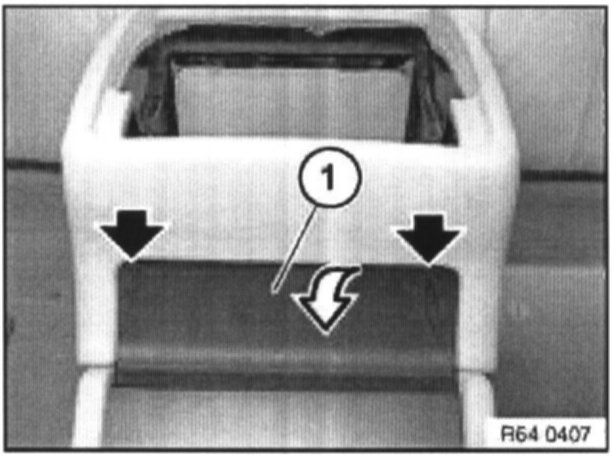

Unclip trim (1) from above and take out towards front.

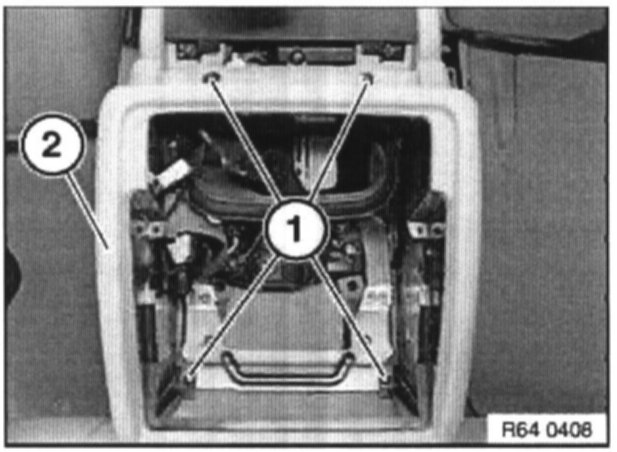

Unscrew bolts (1). Remove console (2) towards top.

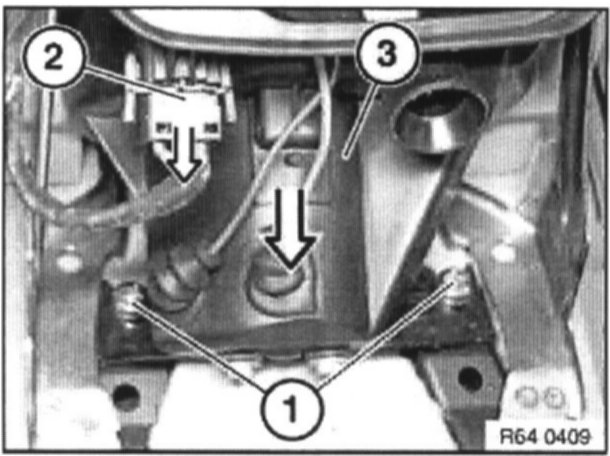

Unscrew bolts (1). Disconnect connector (2). Pull out rear tan (3) towards rear.

Installation:
Make sure air duct is correctly seated.
