Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
2003
>>
525i Sedan (E39) L6-2.5L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>

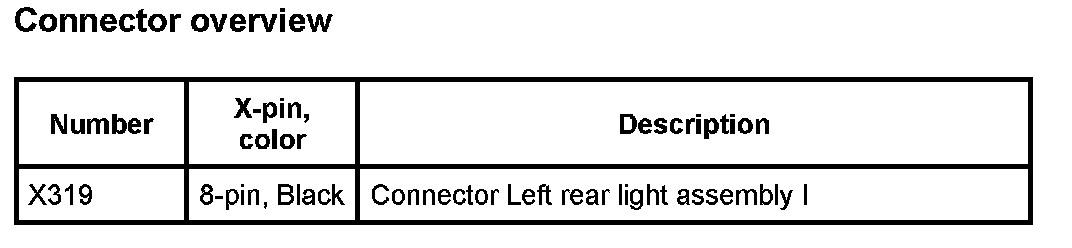

Connector Views
>>

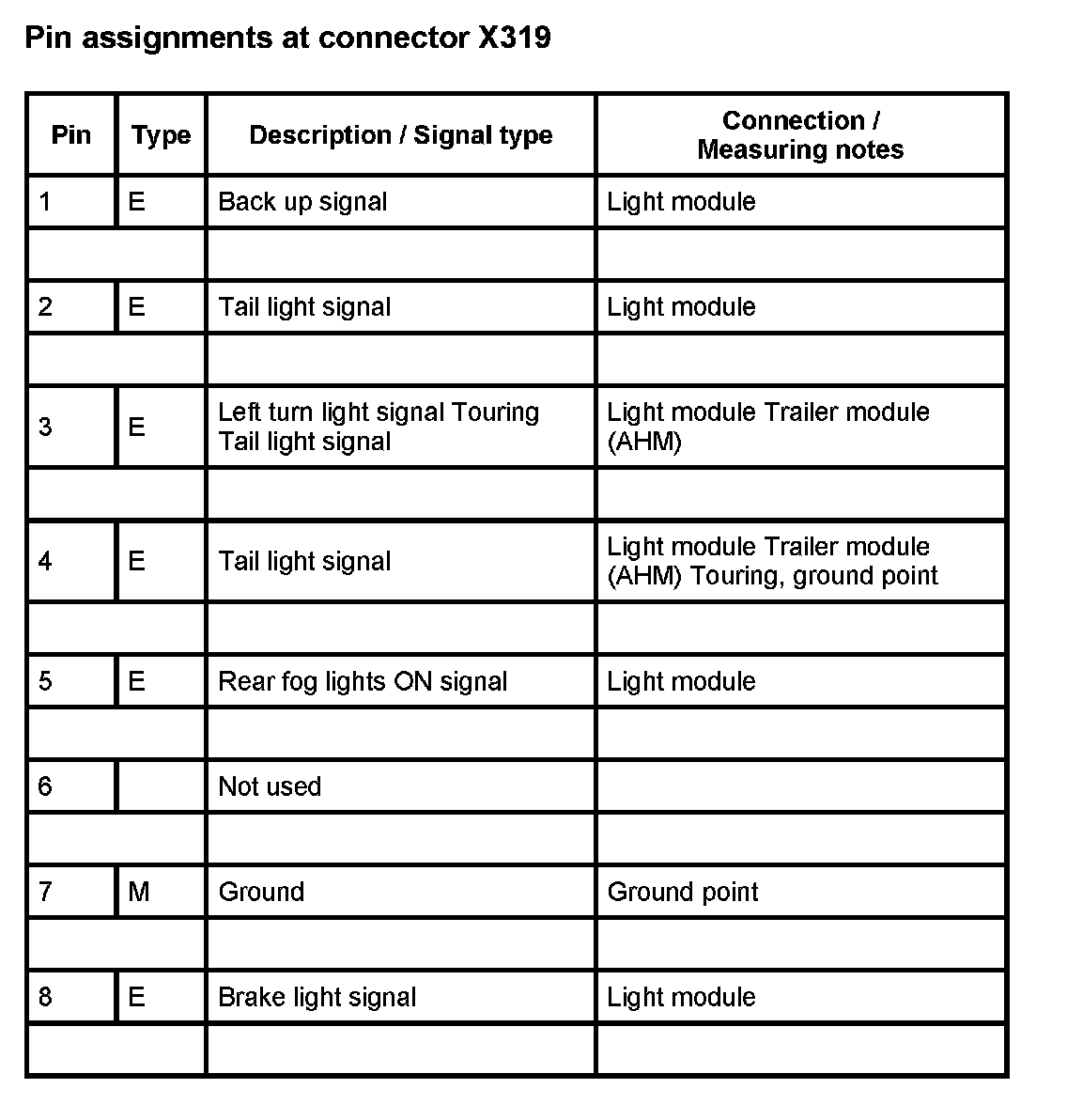

Pin Assignments
>>
E_Lamps, Electrical Heaters
>>
E46 Left Rear Light Assembly I
E46 Left Rear Light Assembly I
