Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
2003
>>
525i Sedan (E39) L6-2.5L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pin Assignments
>>
A_Control Modules, Assemblies
>>

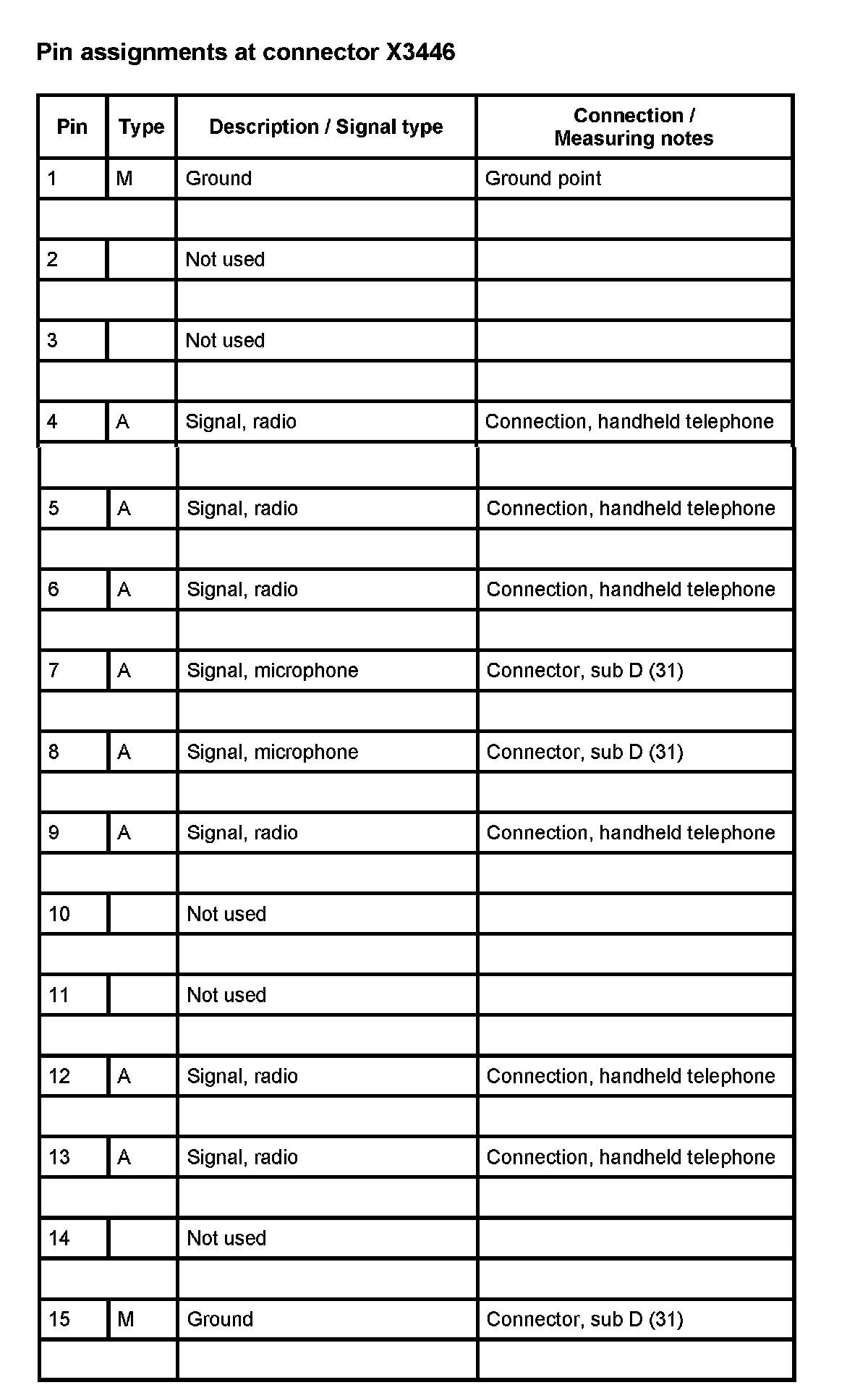

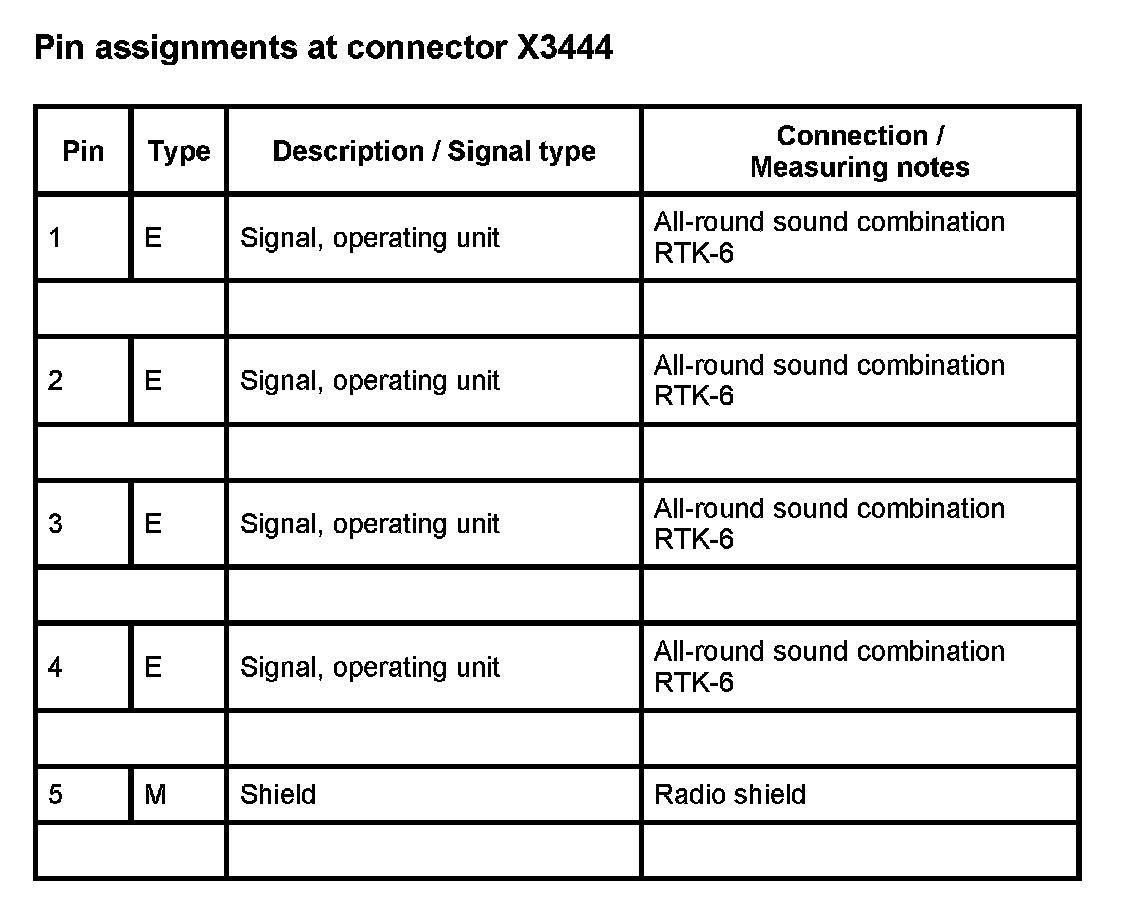

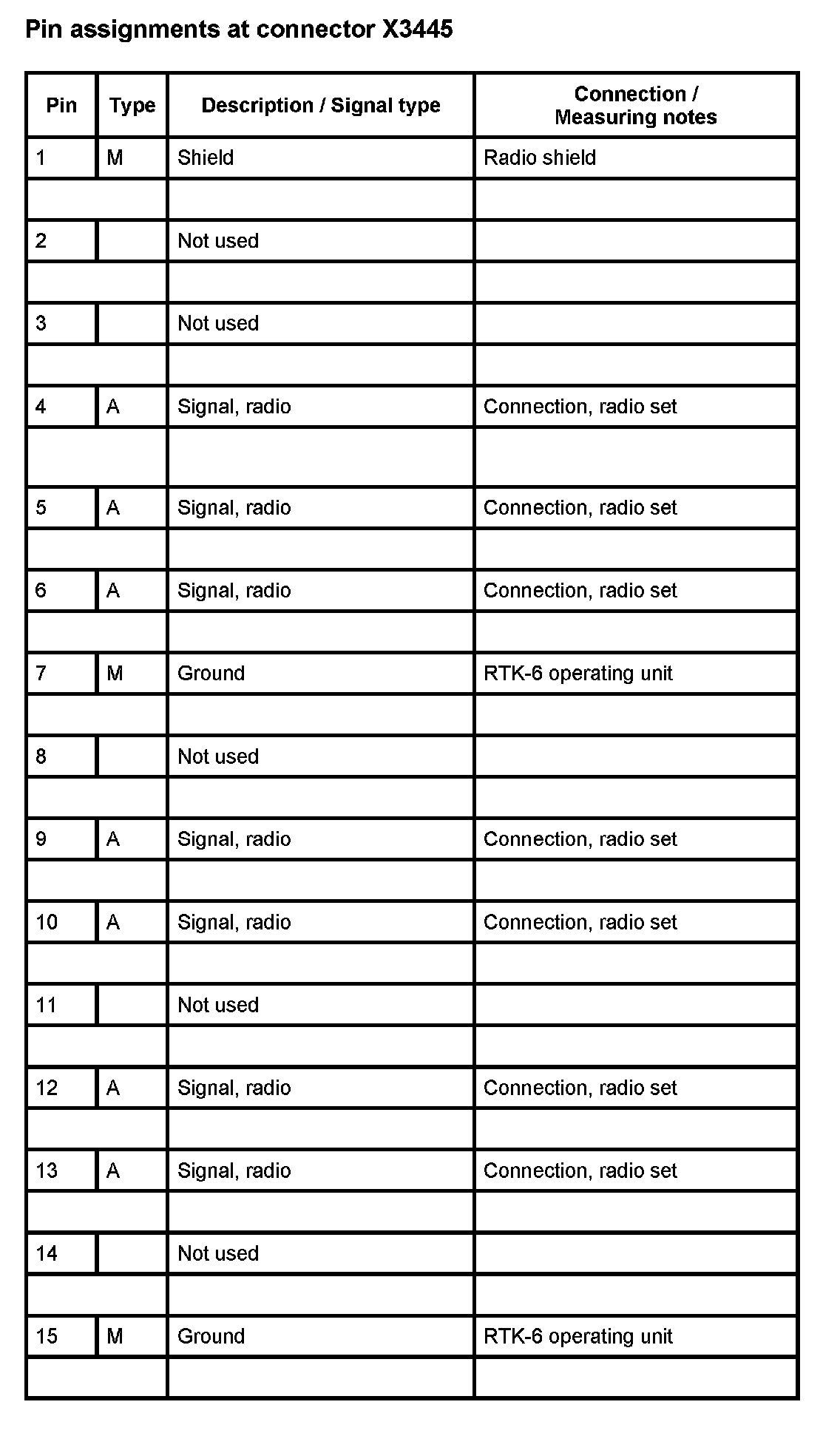

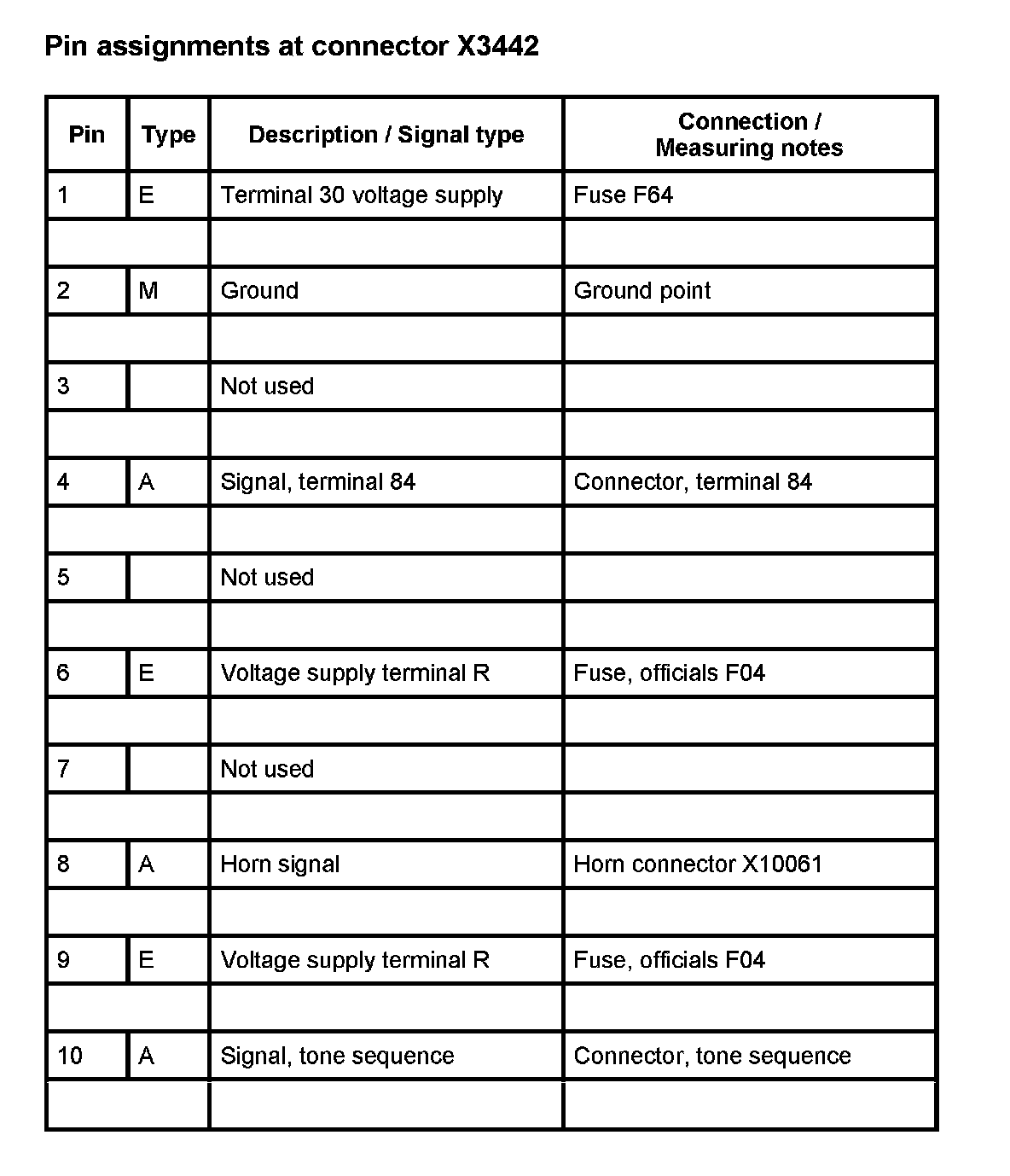

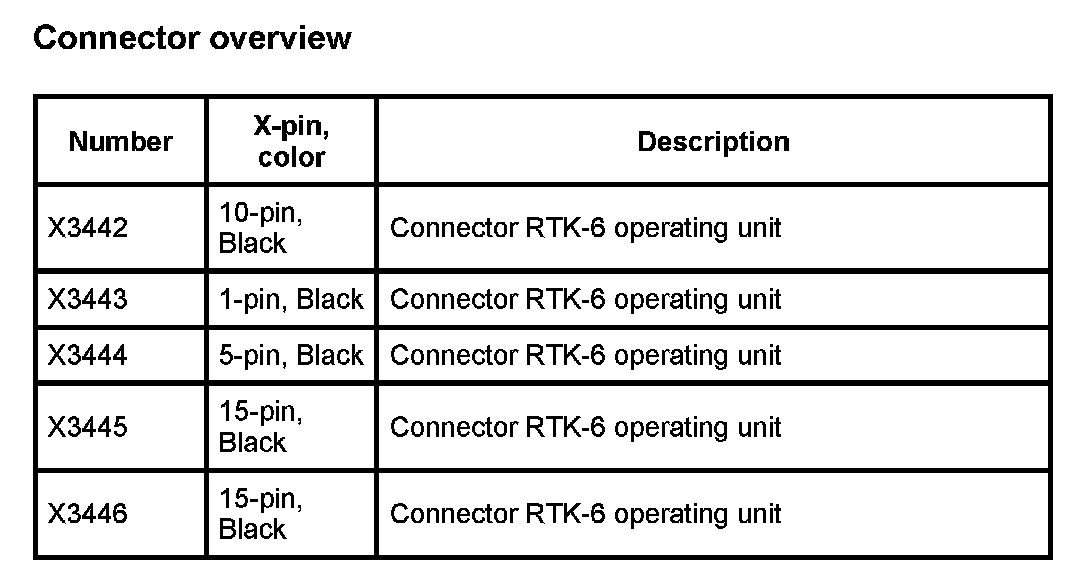

A436 RTK-6 Operating Unit
A436 RTK-6 Operating Unit
