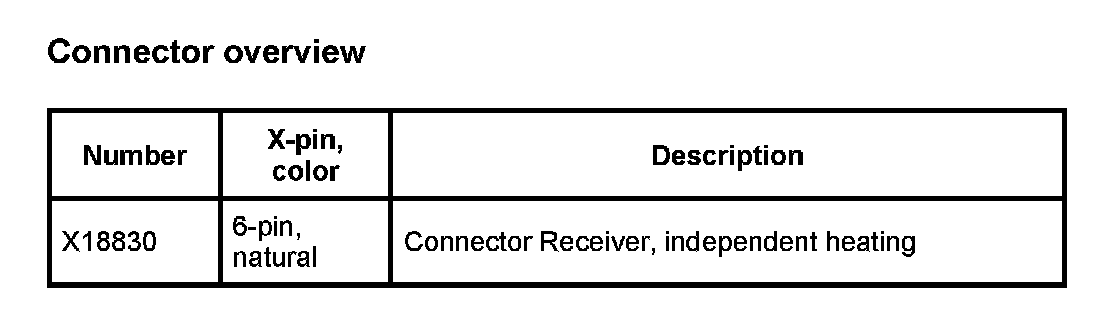

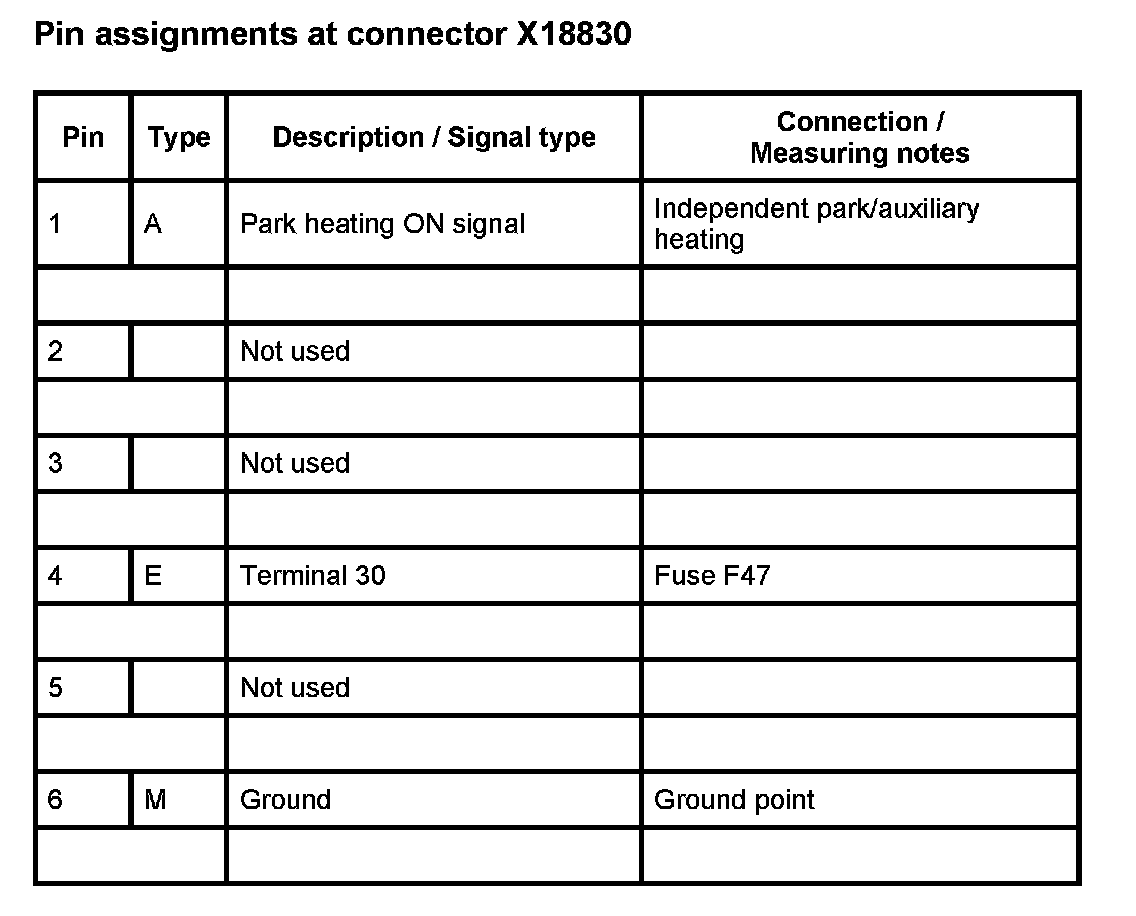

A128 Receiver, Independent Heating (As of 1999_03) (Pin Assignments)
A128 Receiver, Independent Heating (As of 1999_03) (Pin Assignments)
