Home
>>
BMW
>>
2003
>>
525i Sedan (E39) L6-2.5L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

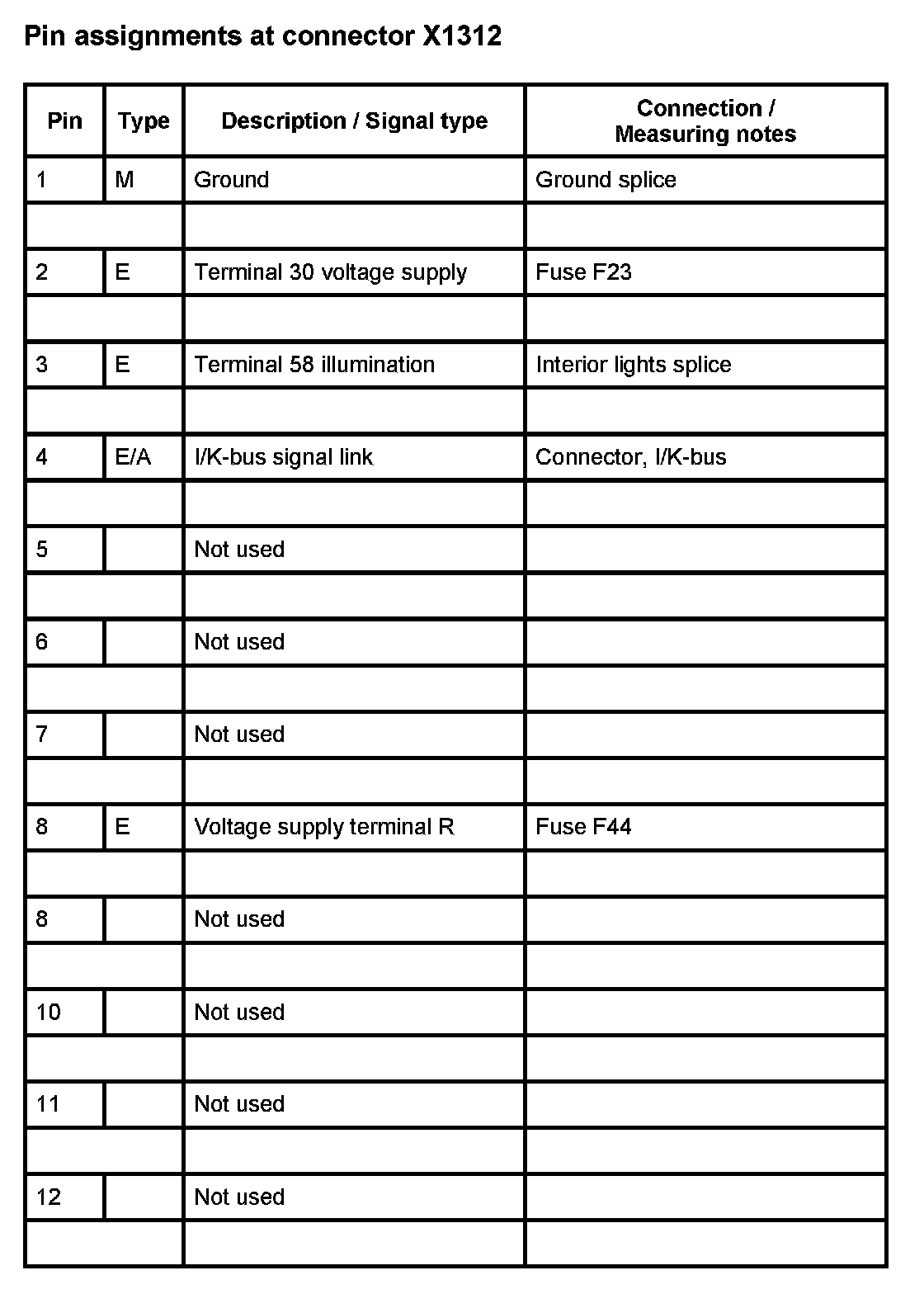

Pin Assignments
>>
A_Control Modules, Assemblies
>>
A111 Rear Multi-Information Display (MID)

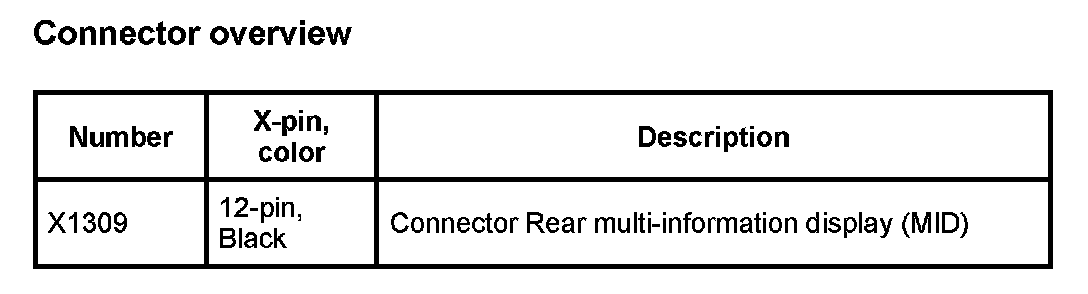

A111 Rear Multi-Information Display (MID)
